PFRA

Schema PFRA.xsd

schema location:	..\..\mods\PFRA.xsd
attribute form default:
element form default:	qualified
targetNamespace:	http://water.eionet.europa.eu/schemas/dir200760ec

Elements	Complex types
PFRA	Article14.4ConsiderationOfClimateChange
	Article4.2_a_Maps
	Article4.2_b_PastAdverseConsequences
	Article4.2_c_SignificantAdverseConsequences
	Article4.2_d_Issues
	Article4.2_d_PotentialAdverseConsequences

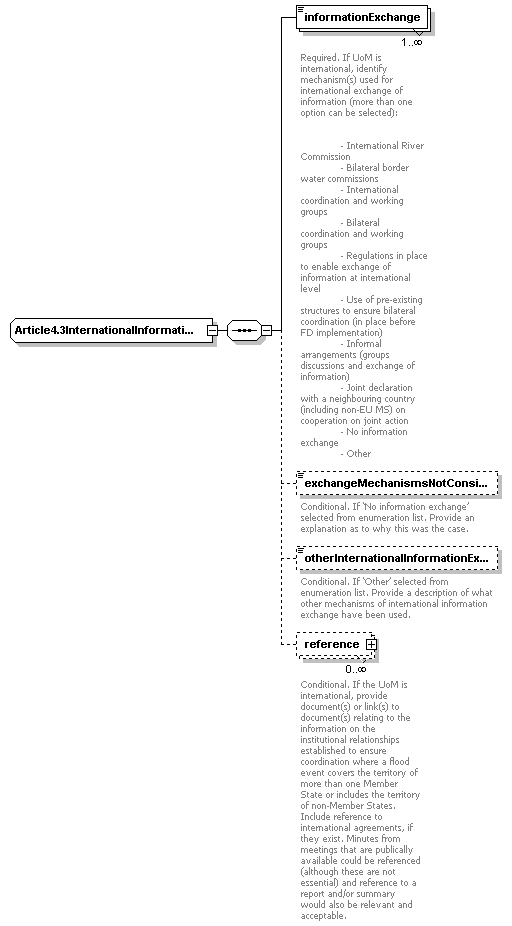

	Article4.3InternationalInformationExchange
	CrossBorder
	CulturalHeritage
	CulturalHeritageDetail

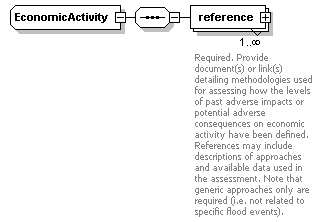

	EconomicActivity
	EconomicActivityDetail
	Environment
	EnvironmentDetail
	FloodData
	FloodEventInformation
	FloodLocation
	HumanHealthSocial

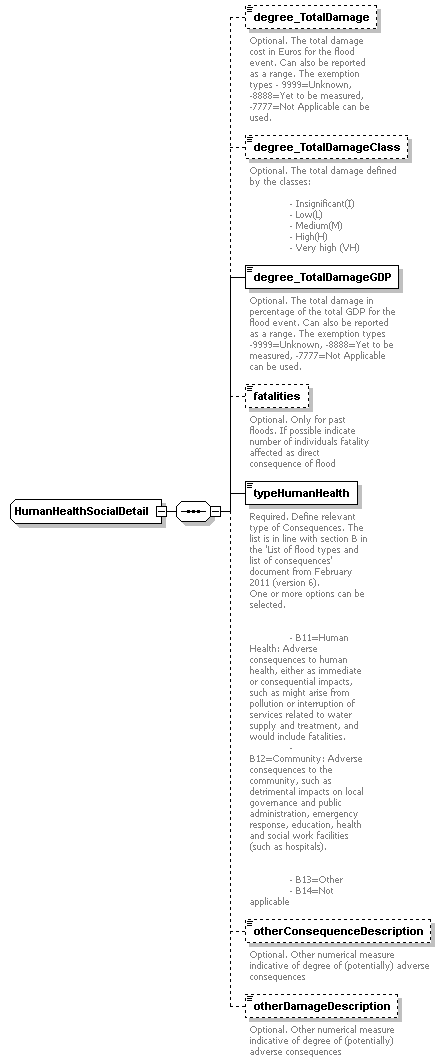

	HumanHealthSocialDetail
	OtherRelevantInformation
	OverallApproachReview_Article14.1
	PFRA
	PFRAInformation
	PFRASummaryInformation
	Sub-UoMAreas
	Sub-UoMAreasType
	TypeofFlood
	TypeofFloodUoM
	TypeofPotentialConsequences
	TypeofPotentialConsequencesMethodology

schema location:	..\..\mods\FDCommon.xsd
attribute form default:
element form default:	qualified
targetNamespace:	http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

Complex types	Simple types
ReferenceType	AnnexAspectsIncluded_enum
	Article_6.6_Justification_Enum
	Article_6.7_Justification_Enum
	AspectsIncluded_Enum
	CategoryFloods_Enum
	CharacteristicsofFlooding_Enum
	ClimateChange_Enum
	ConsultationStakeholdersInvolved_Enum
	ConsultationStakeholdersInvolvedMechanisms_Enum
	CoordinateType
	CoordinationFRMPandRBMP_Enum
	CountryCode_enum
	CriteriaForDeterminationFloodRisk_Enum
	CriteriaForInclusion_Enum
	DataConfidentialityClassificationCode_Enum
	DateTypeYearType
	ElementsProbability6.6_Enum
	ElementsProbability6.7_Enum
	ElementsProbability_Enum
	FeatureUniqueCodeType
	FeatureUniqueCodeTypeEX
	FeatureUniqueEUCodeType
	FloodSourcesMapped_Enum
	GeographicScale_Enum
	HistorialSignificantFloodsCriteria_Enum
	ImpactPublicParticipation_Enum
	InternationalInformationExchange_Enum
	IssuesArticle4.2_d_Enum
	LanguageCode_Enum
	LocalNationalInternationalCoordination_Enum
	MeasureAspect_Enum
	MeasureCodesProgress_Enum
	MeasureType_Enum
	MechanismofFlooding_Enum
	MechanismsOfInternationalCoordination_Enum
	NumberDecimalBaseType
	NumberDecimalType
	NumberExceptionType
	NumberNonNegativeIntegerType
	NumberPercentageBaseType
	NumberPercentageType
	PotentialAdverseConsequencesCriteria_Enum
	PriorInformationExchange_Enum
	PriorityCategories_Enum
	ProtectedAreaType_Enum
	PublicConsultationsMechanisms_Enum
	RelevantSources_Enum
	ReturnperiodandprobabilitiesApproach_Enum
	RoleCode_Enum
	SourceofFlooding_Enum
	String1000Type
	String100Type
	String2000Type
	String250Type
	String5000Type
	String50Type
	TotalDamageClass_Enum
	TypeCulturalHeritage_Enum
	TypeEconomicActivity_Enum
	TypeEnvironment_Enum
	TypeHumanHealth_Enum
	TypeIEDInstallation_Enum
	URLType
	WFDAssociationType_Enum
	WiseDate
	WiseDateTime
	WiseDateTimeType
	WiseEvolutionTypeValue
	WiseLanguageCode_Enum
	WiseYear
	WiseYearMonth
	YearMonthType
	YesCode
	YesNoArticle66_67_enum
	YesNoCode

element PFRA

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

c_Cd euUoMCode metadata url PFRAInformation Sub-UoMAreas

Required. To be provided as year, month, date (e.g. “2012-03-20”)

Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))

xs:string

optional

documentation

Optional. For example “frmplanning@sepa.org.uk”

Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.

Optional. For example: “Floods Directive Provisional Flood Risk Assessment Information”

Optional. For example “ Through the use of an IT database system using Oracle scripts”

classificationCode

DataConfidentialityClassificationCode_Enum

optional

documentation

Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only

source

<xs:element name="PFRA" type="PFRA"/>

complexType Article14.4ConsiderationOfClimateChange

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

climateChangeConsidered climateChangeNotConsideredExplanation reference

used by

element

PFRASummaryInformation/Article14.4ConsiderationOfClimateChange

source

<xs:complexType name="Article14.4ConsiderationOfClimateChange">
<xs:sequence>
    <xs:element name="climateChangeConsidered" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Has climate change been taken into consideration in the review of the PFRA?:

- Yes
- No

If ‘Yes’, provide a reference document(s) or link(s) to the relevant reports and information which explain how climate change has been taken into consideration. If ‘No’, please provide an explantion as to why this was not the case.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="climateChangeNotConsideredExplanation" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘No’ selected from enumeration list. Provide an explanation as to why this was the case. </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Yes’ selected, provide document(s) or link(s) to the information relating to how climate change has been taken into consideration in the review of the PFRA?</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Article14.4ConsiderationOfClimateChange/climateChangeConsidered

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Required. Has climate change been taken into consideration in the review of the PFRA?:

- Yes
- No

If ‘Yes’, provide a reference document(s) or link(s) to the relevant reports and information which explain how climate change has been taken into consideration. If ‘No’, please provide an explantion as to why this was not the case.

source

<xs:element name="climateChangeConsidered" type="fd:YesNoCode">
<xs:annotation>
<xs:documentation>Required. Has climate change been taken into consideration in the review of the PFRA?:

- Yes
- No

If ‘Yes’, provide a reference document(s) or link(s) to the relevant reports and information which explain how climate change has been taken into consideration. If ‘No’, please provide an explantion as to why this was not the case.</xs:documentation>
</xs:annotation>
</xs:element>

element Article14.4ConsiderationOfClimateChange/climateChangeNotConsideredExplanation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘No’ selected from enumeration list. Provide an explanation as to why this was the case.

source

<xs:element name="climateChangeNotConsideredExplanation" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘No’ selected from enumeration list. Provide an explanation as to why this was the case. </xs:documentation>
</xs:annotation>
</xs:element>

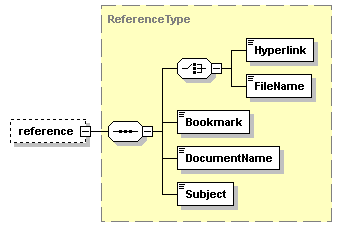

element Article14.4ConsiderationOfClimateChange/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Conditional. If ‘Yes’ selected, provide document(s) or link(s) to the information relating to how climate change has been taken into consideration in the review of the PFRA?

source

<xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. If ‘Yes’ selected, provide document(s) or link(s) to the information relating to how climate change has been taken into consideration in the review of the PFRA?</xs:documentation>
</xs:annotation>
</xs:element>

complexType Article4.2_a_Maps

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

article4.2_a_MapsAvailable description reference

used by

element

PFRASummaryInformation/Article4.2_a_Maps

source

<xs:complexType name="Article4.2_a_Maps">
<xs:sequence>
    <xs:element name="article4.2_a_MapsAvailable" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Map(s) according to Article 4.2(a) (to be coordinated with WFD reporting) including topography and land use.

- Yes
- No

if YES provide a reference document or link in the Reference schema, If NO provide a reason/description (text) in the /Description schema.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="description" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. Provide a reason/description if Article4.2(a)Maps is set to ‘No’.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. Provide a reference(s) if Article4aMaps is set to ‘Yes’. Provide a reference(s) to the map(s) and to how the map(s) was (were) used in the preliminary flood risk assessment. </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Article4.2_a_Maps/article4.2_a_MapsAvailable

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Required. Map(s) according to Article 4.2(a) (to be coordinated with WFD reporting) including topography and land use.

- Yes
- No

if YES provide a reference document or link in the Reference schema, If NO provide a reason/description (text) in the /Description schema.

source

<xs:element name="article4.2_a_MapsAvailable" type="fd:YesNoCode">
<xs:annotation>
<xs:documentation>Required. Map(s) according to Article 4.2(a) (to be coordinated with WFD reporting) including topography and land use.

- Yes
- No

if YES provide a reference document or link in the Reference schema, If NO provide a reason/description (text) in the /Description schema.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_a_Maps/description

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. Provide a reason/description if Article4.2(a)Maps is set to ‘No’.

source

<xs:element name="description" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. Provide a reason/description if Article4.2(a)Maps is set to ‘No’.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_a_Maps/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Conditional. Provide a reference(s) if Article4aMaps is set to ‘Yes’. Provide a reference(s) to the map(s) and to how the map(s) was (were) used in the preliminary flood risk assessment.

source

<xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Provide a reference(s) if Article4aMaps is set to ‘Yes’. Provide a reference(s) to the map(s) and to how the map(s) was (were) used in the preliminary flood risk assessment. </xs:documentation>
</xs:annotation>
</xs:element>

complexType Article4.2_b_PastAdverseConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

criteriaUsed expertJudgementDescription criteriaOther reference

used by

element

PFRASummaryInformation/Article4.2_b_PastAdverseConsequences

source

<xs:complexType name="Article4.2_b_PastAdverseConsequences">
<xs:sequence>
    <xs:element name="criteriaUsed" type="fd:HistorialSignificantFloodsCriteria_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Criteria used to define past floods with significant adverse impacts, with likelihood of repetition (more than one option can be selected).

- Flooded area
- Residents in flooded area
- Number of buildings affected
- Level of damage caused (e.g. high, medium, low)
- Required amount of money in compensation
- Return period
- Duration of occurrence
- Whether a specific flood warning level was triggered
- Specific weighting systems defined to assess significance
- Expert Judgement

- Other</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="expertJudgementDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional if ‘Expert Judgement’ has been selected from enumeration list, provide a brief description as to how expert judgement was used to define past floods with significant adverse impacts.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="criteriaOther" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list provide a description of what other criteria (there may be several ‘other’ criteria) have been used to define past floods with significant adverse impacts, with likelihood of repetition.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to the methodology and criteria used to identify and assess floods that occurred in the past and their past adverse consequences (including whether such consequences would be ‘significant’) and whether the likelihood of such floods remains relevant. </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Article4.2_b_PastAdverseConsequences/criteriaUsed

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

HistorialSignificantFloodsCriteria_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Flooded area
enumeration	Number of residents in flooded area
enumeration	Number of buildings affected
enumeration	Affected area with commercial or industrial use
enumeration	Level of damage caused (e.g. high, medium, low)
enumeration	Required amount of money in compensation
enumeration	Return period
enumeration	Duration of occurrence
enumeration	Whether a specific flood warning level was triggered
enumeration	Specific weighting systems/benchmark defined to assess significance
enumeration	Expert Judgement
enumeration	Other

annotation

documentation

Required. Criteria used to define past floods with significant adverse impacts, with likelihood of repetition (more than one option can be selected).

- Flooded area
- Residents in flooded area
- Number of buildings affected
- Level of damage caused (e.g. high, medium, low)
- Required amount of money in compensation
- Return period
- Duration of occurrence
- Whether a specific flood warning level was triggered
- Specific weighting systems defined to assess significance
- Expert Judgement

- Other

source

<xs:element name="criteriaUsed" type="fd:HistorialSignificantFloodsCriteria_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Criteria used to define past floods with significant adverse impacts, with likelihood of repetition (more than one option can be selected).

- Flooded area
- Residents in flooded area
- Number of buildings affected
- Level of damage caused (e.g. high, medium, low)
- Required amount of money in compensation
- Return period
- Duration of occurrence
- Whether a specific flood warning level was triggered
- Specific weighting systems defined to assess significance
- Expert Judgement

- Other</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_b_PastAdverseConsequences/expertJudgementDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional if ‘Expert Judgement’ has been selected from enumeration list, provide a brief description as to how expert judgement was used to define past floods with significant adverse impacts.

source

<xs:element name="expertJudgementDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional if ‘Expert Judgement’ has been selected from enumeration list, provide a brief description as to how expert judgement was used to define past floods with significant adverse impacts.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_b_PastAdverseConsequences/criteriaOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected from enumeration list provide a description of what other criteria (there may be several ‘other’ criteria) have been used to define past floods with significant adverse impacts, with likelihood of repetition.

source

<xs:element name="criteriaOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected from enumeration list provide a description of what other criteria (there may be several ‘other’ criteria) have been used to define past floods with significant adverse impacts, with likelihood of repetition.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_b_PastAdverseConsequences/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to the methodology and criteria used to identify and assess floods that occurred in the past and their past adverse consequences (including whether such consequences would be ‘significant’) and whether the likelihood of such floods remains relevant.

source

<xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to the methodology and criteria used to identify and assess floods that occurred in the past and their past adverse consequences (including whether such consequences would be ‘significant’) and whether the likelihood of such floods remains relevant. </xs:documentation>
</xs:annotation>
</xs:element>

complexType Article4.2_c_SignificantAdverseConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

criteriaUsed expertJudgementDescription criteriaOther reference

used by

element

PFRASummaryInformation/Article4.2_c_SignificantAdverseConsequences

source

<xs:complexType name="Article4.2_c_SignificantAdverseConsequences">
<xs:sequence>
    <xs:element name="criteriaUsed" type="fd:HistorialSignificantFloodsCriteria_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Criteria used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future (more than one option can be selected).

- Flooded area
- Number of residents in flooded area
- Number of buildings affected
- Affected area with commercial or industrial use
- Level of damage caused (e.g. high, medium, low)
- Required amount of money in compensation
- Return period
- Duration of occurrence
- Whether a specific flood warning level was triggered
- Specific weighting systems/benchmark defined to assess significance
- Expert Judgement
- Other </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="expertJudgementDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional if ‘Expert Judgement’ has been selected from enumeration list, provide a brief description as to how expert judgement was used to define past floods.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="criteriaOther" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria (there may be several ‘other’ criteria) have been used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to the methodology and criteria used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future. </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Article4.2_c_SignificantAdverseConsequences/criteriaUsed

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

HistorialSignificantFloodsCriteria_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Flooded area
enumeration	Number of residents in flooded area
enumeration	Number of buildings affected
enumeration	Affected area with commercial or industrial use
enumeration	Level of damage caused (e.g. high, medium, low)
enumeration	Required amount of money in compensation
enumeration	Return period
enumeration	Duration of occurrence
enumeration	Whether a specific flood warning level was triggered
enumeration	Specific weighting systems/benchmark defined to assess significance
enumeration	Expert Judgement
enumeration	Other

annotation

documentation

Required. Criteria used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future (more than one option can be selected).

- Flooded area
- Number of residents in flooded area
- Number of buildings affected
- Affected area with commercial or industrial use
- Level of damage caused (e.g. high, medium, low)
- Required amount of money in compensation
- Return period
- Duration of occurrence
- Whether a specific flood warning level was triggered
- Specific weighting systems/benchmark defined to assess significance
- Expert Judgement
- Other

source

<xs:element name="criteriaUsed" type="fd:HistorialSignificantFloodsCriteria_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Criteria used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future (more than one option can be selected).

- Flooded area
- Number of residents in flooded area
- Number of buildings affected
- Affected area with commercial or industrial use
- Level of damage caused (e.g. high, medium, low)
- Required amount of money in compensation
- Return period
- Duration of occurrence
- Whether a specific flood warning level was triggered
- Specific weighting systems/benchmark defined to assess significance
- Expert Judgement
- Other </xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_c_SignificantAdverseConsequences/expertJudgementDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional if ‘Expert Judgement’ has been selected from enumeration list, provide a brief description as to how expert judgement was used to define past floods.

source

<xs:element name="expertJudgementDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional if ‘Expert Judgement’ has been selected from enumeration list, provide a brief description as to how expert judgement was used to define past floods.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_c_SignificantAdverseConsequences/criteriaOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria (there may be several ‘other’ criteria) have been used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future.

source

<xs:element name="criteriaOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria (there may be several ‘other’ criteria) have been used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_c_SignificantAdverseConsequences/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to the methodology and criteria used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future.

source

<xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to the methodology and criteria used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future. </xs:documentation>
</xs:annotation>
</xs:element>

complexType Article4.2_d_Issues

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

PFRASummaryInformation/Article4.2_d_Issues

source

<xs:complexType name="Article4.2_d_Issues">
<xs:sequence>
    <xs:element name="issues" type="fd:IssuesArticle4.2_d_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Issues considered to support the assessment of potential adverse consequences of future floods (more than one option can be selected):

• Topography
• Position of watercourses and their general hydrological and geomorphological characteristics,
• floodplains as natural retention areas
• the effectiveness of existing man-made flood defence infrastructures
• the position of populated areas
• areas of economic activity
• impacts of climate change on the occurrence of floods
• long-term developments; development of settlements (private, public and commercial)
• long-term developments; development of infrastructure (transport, water, energy and telecoms)
• long-term developments; rural land-use change
• The specific needs of the of the MS do not require an assessment under Article 4.2(d) </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to the information relating to how each of the issues identified under Article 4.2(d) (listed in the schema sketch above) were considered to support the assessment of potential adverse consequences of future floods including information on the methodologies applied to consider those issues. If the specific needs of the MS do not require an assessment under Article 4.2(d) please provide a reason.</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Article4.2_d_Issues/issues

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

IssuesArticle4.2_d_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Topography
enumeration	Position of watercourses and their general hydrological and geomorphological characteristics
enumeration	Floodplains as natural retention areas
enumeration	The effectiveness of existing man-made flood defence infrastructures
enumeration	The position of populated areas
enumeration	Areas of economic activity
enumeration	Impacts of climate change on the occurrence of floods
enumeration	Long-term developments; development of settlements (private, public and commercial)
enumeration	Long-term developments; development of infrastructure (transport, water, energy and telecoms)
enumeration	Long-term developments; rural land-use change
enumeration	The specific needs of the of the MS do not require an assessment under Article 4.2(d)

annotation

documentation

Required. Issues considered to support the assessment of potential adverse consequences of future floods (more than one option can be selected):

• Topography
• Position of watercourses and their general hydrological and geomorphological characteristics,
• floodplains as natural retention areas
• the effectiveness of existing man-made flood defence infrastructures
• the position of populated areas
• areas of economic activity
• impacts of climate change on the occurrence of floods
• long-term developments; development of settlements (private, public and commercial)
• long-term developments; development of infrastructure (transport, water, energy and telecoms)
• long-term developments; rural land-use change
• The specific needs of the of the MS do not require an assessment under Article 4.2(d)

source

<xs:element name="issues" type="fd:IssuesArticle4.2_d_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Issues considered to support the assessment of potential adverse consequences of future floods (more than one option can be selected):

• Topography
• Position of watercourses and their general hydrological and geomorphological characteristics,
• floodplains as natural retention areas
• the effectiveness of existing man-made flood defence infrastructures
• the position of populated areas
• areas of economic activity
• impacts of climate change on the occurrence of floods
• long-term developments; development of settlements (private, public and commercial)
• long-term developments; development of infrastructure (transport, water, energy and telecoms)
• long-term developments; rural land-use change
• The specific needs of the of the MS do not require an assessment under Article 4.2(d) </xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_d_Issues/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) to the information relating to how each of the issues identified under Article 4.2(d) (listed in the schema sketch above) were considered to support the assessment of potential adverse consequences of future floods including information on the methodologies applied to consider those issues. If the specific needs of the MS do not require an assessment under Article 4.2(d) please provide a reason.

source

<xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to the information relating to how each of the issues identified under Article 4.2(d) (listed in the schema sketch above) were considered to support the assessment of potential adverse consequences of future floods including information on the methodologies applied to consider those issues. If the specific needs of the MS do not require an assessment under Article 4.2(d) please provide a reason.</xs:documentation>
</xs:annotation>
</xs:element>

complexType Article4.2_d_PotentialAdverseConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

criteriaUsed expertJudgementDescription criteriaOther reference

used by

element

PFRASummaryInformation/Article4.2_d_PotentialAdverseConsequences

source

<xs:complexType name="Article4.2_d_PotentialAdverseConsequences">
<xs:sequence>
    <xs:element name="criteriaUsed" type="fd:PotentialAdverseConsequencesCriteria_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Criteria used to identify potential adverse consequences of future floods (more than one option can be selected):

- Potential number of permanent residents affected by the flood extent in flood plains
- Potential value/area of property affected (residential and non-residential)
- Potential number of buildings affected (residential and non-residential)
- Potential adverse consequences to infrastructural assets
- Damage potential exceeds specific threshold (area)
- Potential adverse consequences on water bodies
- Potential sources of pollution triggered from industrial installations
- Potential adverse consequences to rural land use
- Potential adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
- Potential adverse impacts on cultural assets and cultural landscapes
- Recurrence periods
- Recurrence periods in combination with land use
- Water level or depth
- Water velocity
- Whether floods have occurred in the past
- Specific weighting systems defined to assess significance
- Expert Judgement
- Other
- The specific needs of the of the MS do not require an assessment under Article 4.2(d) </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="expertJudgementDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Expert Judgement’ selected from enumeration list, provide a brief description as to how expert judgement was used to define potential adverse consequences of future floods.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="criteriaOther" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria (there may be several ‘other’ criteria) have been used to define adverse consequences of future floods.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) to the methodology and criteria used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future.</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Article4.2_d_PotentialAdverseConsequences/criteriaUsed

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

PotentialAdverseConsequencesCriteria_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	Potential number of permanent residents affected by the flood extent in flood plains
enumeration	Potential value/area of property affected (residential and non-residential)
enumeration	Potential number of buildings affected (residential and non-residential)
enumeration	Potential adverse consequences to infrastructural assets
enumeration	Damage potential exceeds specific threshold (area)
enumeration	Potential adverse consequences on water bodies
enumeration	Potential sources of pollution triggered from industrial installations
enumeration	Potential adverse consequences to rural land use
enumeration	Potential adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
enumeration	Potential adverse impacts on cultural assets and cultural landscapes
enumeration	Recurrence periods
enumeration	Recurrence periods in combination with land use
enumeration	Water level or depth
enumeration	Water velocity
enumeration	Whether floods have occurred in the past
enumeration	Specific weighting systems defined to assess significance
enumeration	Expert Judgement
enumeration	Other
enumeration	The specific needs of the of the MS do not require an assessment under Article 4.2(d)

annotation

documentation

Required. Criteria used to identify potential adverse consequences of future floods (more than one option can be selected):

- Potential number of permanent residents affected by the flood extent in flood plains
- Potential value/area of property affected (residential and non-residential)
- Potential number of buildings affected (residential and non-residential)
- Potential adverse consequences to infrastructural assets
- Damage potential exceeds specific threshold (area)
- Potential adverse consequences on water bodies
- Potential sources of pollution triggered from industrial installations
- Potential adverse consequences to rural land use
- Potential adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
- Potential adverse impacts on cultural assets and cultural landscapes
- Recurrence periods
- Recurrence periods in combination with land use
- Water level or depth
- Water velocity
- Whether floods have occurred in the past
- Specific weighting systems defined to assess significance
- Expert Judgement
- Other
- The specific needs of the of the MS do not require an assessment under Article 4.2(d)

source

<xs:element name="criteriaUsed" type="fd:PotentialAdverseConsequencesCriteria_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Criteria used to identify potential adverse consequences of future floods (more than one option can be selected):

- Potential number of permanent residents affected by the flood extent in flood plains
- Potential value/area of property affected (residential and non-residential)
- Potential number of buildings affected (residential and non-residential)
- Potential adverse consequences to infrastructural assets
- Damage potential exceeds specific threshold (area)
- Potential adverse consequences on water bodies
- Potential sources of pollution triggered from industrial installations
- Potential adverse consequences to rural land use
- Potential adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
- Potential adverse impacts on cultural assets and cultural landscapes
- Recurrence periods
- Recurrence periods in combination with land use
- Water level or depth
- Water velocity
- Whether floods have occurred in the past
- Specific weighting systems defined to assess significance
- Expert Judgement
- Other
- The specific needs of the of the MS do not require an assessment under Article 4.2(d) </xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_d_PotentialAdverseConsequences/expertJudgementDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘Expert Judgement’ selected from enumeration list, provide a brief description as to how expert judgement was used to define potential adverse consequences of future floods.

source

<xs:element name="expertJudgementDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Expert Judgement’ selected from enumeration list, provide a brief description as to how expert judgement was used to define potential adverse consequences of future floods.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_d_PotentialAdverseConsequences/criteriaOther

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria (there may be several ‘other’ criteria) have been used to define adverse consequences of future floods.

source

<xs:element name="criteriaOther" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other criteria (there may be several ‘other’ criteria) have been used to define adverse consequences of future floods.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.2_d_PotentialAdverseConsequences/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

source

<xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) to the methodology and criteria used to define significant past floods (without known significant adverse impacts) with likelihood for significant adverse consequences in the future.</xs:documentation>
</xs:annotation>
</xs:element>

complexType Article4.3InternationalInformationExchange

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

informationExchange exchangeMechanismsNotConsidered otherInternationalInformationExchange reference

used by

element

PFRASummaryInformation/Article4.3InternationalInformationExchange

source

<xs:complexType name="Article4.3InternationalInformationExchange">
<xs:sequence>
    <xs:element name="informationExchange" type="fd:InternationalInformationExchange_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. If UoM is international, identify mechanism(s) used for international exchange of information (more than one option can be selected):

- International River Commission
- Bilateral border water commissions
- International coordination and working groups
- Bilateral coordination and working groups
- Regulations in place to enable exchange of information at international level
- Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
- Informal arrangements (groups discussions and exchange of information)
- Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
- No information exchange
- Other</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="exchangeMechanismsNotConsidered" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘No information exchange’ selected from enumeration list. Provide an explanation as to why this was the case.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherInternationalInformationExchange" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other mechanisms of international information exchange have been used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Conditional. If the UoM is international, provide document(s) or link(s) to document(s) relating to the information on the institutional relationships established to ensure coordination where a flood event covers the territory of more than one Member State or includes the territory of non-Member States. Include reference to international agreements, if they exist. Minutes from meetings that are publically available could be referenced (although these are not essential) and reference to a report and/or summary would also be relevant and acceptable.</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Article4.3InternationalInformationExchange/informationExchange

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

InternationalInformationExchange_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	International River Commission
enumeration	Bilateral border water commissions
enumeration	International coordination and working groups
enumeration	Bilateral coordination and working groups
enumeration	Regulations in place to enable exchange of information at international level
enumeration	Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration	Informal arrangements (groups discussions and exchange of information)
enumeration	Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration	No information exchange
enumeration	Other

annotation

documentation

Required. If UoM is international, identify mechanism(s) used for international exchange of information (more than one option can be selected):

- International River Commission
- Bilateral border water commissions
- International coordination and working groups
- Bilateral coordination and working groups
- Regulations in place to enable exchange of information at international level
- Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
- Informal arrangements (groups discussions and exchange of information)
- Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
- No information exchange
- Other

source

<xs:element name="informationExchange" type="fd:InternationalInformationExchange_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. If UoM is international, identify mechanism(s) used for international exchange of information (more than one option can be selected):

- International River Commission
- Bilateral border water commissions
- International coordination and working groups
- Bilateral coordination and working groups
- Regulations in place to enable exchange of information at international level
- Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
- Informal arrangements (groups discussions and exchange of information)
- Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
- No information exchange
- Other</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.3InternationalInformationExchange/exchangeMechanismsNotConsidered

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘No information exchange’ selected from enumeration list. Provide an explanation as to why this was the case.

source

<xs:element name="exchangeMechanismsNotConsidered" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘No information exchange’ selected from enumeration list. Provide an explanation as to why this was the case.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.3InternationalInformationExchange/otherInternationalInformationExchange

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other mechanisms of international information exchange have been used.

source

<xs:element name="otherInternationalInformationExchange" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘Other’ selected from enumeration list. Provide a description of what other mechanisms of international information exchange have been used.</xs:documentation>
</xs:annotation>
</xs:element>

element Article4.3InternationalInformationExchange/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Conditional. If the UoM is international, provide document(s) or link(s) to document(s) relating to the information on the institutional relationships established to ensure coordination where a flood event covers the territory of more than one Member State or includes the territory of non-Member States. Include reference to international agreements, if they exist. Minutes from meetings that are publically available could be referenced (although these are not essential) and reference to a report and/or summary would also be relevant and acceptable.

source

<xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. If the UoM is international, provide document(s) or link(s) to document(s) relating to the information on the institutional relationships established to ensure coordination where a flood event covers the territory of more than one Member State or includes the territory of non-Member States. Include reference to international agreements, if they exist. Minutes from meetings that are publically available could be referenced (although these are not essential) and reference to a report and/or summary would also be relevant and acceptable.</xs:documentation>
</xs:annotation>
</xs:element>

complexType CrossBorder

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

crossBorderRelationship crossBorderRelationshipDescription

used by

element

FloodLocation/CrossBorder

source

<xs:complexType name="CrossBorder">
<xs:sequence>
    <xs:element name="crossBorderRelationship" type="fd:YesNoCode">
      <xs:annotation>
        <xs:documentation>Required. Please indicate with "Y" (yes) if the flood location cross the national border or the unit of management

- Yes
- No</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="crossBorderRelationshipDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>An optional schema element has been introduced for MS to describe the nature of the cross border relationship as far as flood location is concerned. The flood location may extend into a neighbouring MS or non-MS for example and may possibly cross more than one border. MS have the option of describing the MS or Non-MS involved and the extent to which the flood has historically or has potential to extend into other MS or non-MS.

Optional. If the flood location(s) cross the national border or the unit of management provide a description of the nature of this relationship</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element CrossBorder/crossBorderRelationship

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Required. Please indicate with "Y" (yes) if the flood location cross the national border or the unit of management

- Yes
- No

source

<xs:element name="crossBorderRelationship" type="fd:YesNoCode">
<xs:annotation>
<xs:documentation>Required. Please indicate with "Y" (yes) if the flood location cross the national border or the unit of management

- Yes
- No</xs:documentation>
</xs:annotation>
</xs:element>

element CrossBorder/crossBorderRelationshipDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

An optional schema element has been introduced for MS to describe the nature of the cross border relationship as far as flood location is concerned. The flood location may extend into a neighbouring MS or non-MS for example and may possibly cross more than one border. MS have the option of describing the MS or Non-MS involved and the extent to which the flood has historically or has potential to extend into other MS or non-MS.

Optional. If the flood location(s) cross the national border or the unit of management provide a description of the nature of this relationship

source

<xs:element name="crossBorderRelationshipDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>An optional schema element has been introduced for MS to describe the nature of the cross border relationship as far as flood location is concerned. The flood location may extend into a neighbouring MS or non-MS for example and may possibly cross more than one border. MS have the option of describing the MS or Non-MS involved and the extent to which the flood has historically or has potential to extend into other MS or non-MS.

Optional. If the flood location(s) cross the national border or the unit of management provide a description of the nature of this relationship</xs:documentation>
</xs:annotation>
</xs:element>

complexType CulturalHeritage

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

TypeofPotentialConsequencesMethodology/CulturalHeritage

source

<xs:complexType name="CulturalHeritage">
<xs:sequence>
    <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on cultural heritage have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element CulturalHeritage/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on cultural heritage have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).

source

<xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on cultural heritage have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).</xs:documentation>
</xs:annotation>
</xs:element>

complexType CulturalHeritageDetail

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

degree_TotalDamage degree_TotalDamageClass degree_TotalDamageGDP typeCulturalHeritage otherConsequenceDescription otherDamageDescription

used by

element

TypeofPotentialConsequences/CulturalHeritageDetail

source

<xs:complexType name="CulturalHeritageDetail">
<xs:sequence>
    <xs:element name="degree_TotalDamage" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage cost in Euros for the flood event. Can also be reported as a range. The exemption types - 9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="degree_TotalDamageClass" type="fd:TotalDamageClass_Enum" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage defined by the classes:

- Insignificant(I)
- Low(L)
- Medium(M)
- High(H)
- Very high (VH)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="degree_TotalDamageGDP" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage in percentage of the total GDP for the flood event. Can also be reported as a range. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>

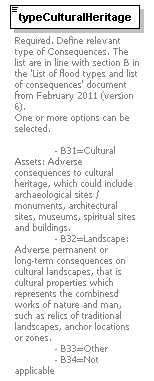

    <xs:element name="typeCulturalHeritage" type="fd:TypeCulturalHeritage_Enum">
      <xs:annotation>
        <xs:documentation>Required. Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

- B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.
- B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.
- B33=Other
- B34=Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherDamageDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Other numerical measure indicative of degree of (potentially) adverse consequences</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element CulturalHeritageDetail/degree_TotalDamage

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

Optional. The total damage cost in Euros for the flood event. Can also be reported as a range. The exemption types - 9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="degree_TotalDamage" type="fd:String50Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. The total damage cost in Euros for the flood event. Can also be reported as a range. The exemption types - 9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element CulturalHeritageDetail/degree_TotalDamageClass

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TotalDamageClass_Enum

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	H - High
enumeration	I - Insignificnt
enumeration	L - Low
enumeration	M - Medium
enumeration	NA - Not Applicable
enumeration	U - Unknown
enumeration	VH - Very high

annotation

documentation

Optional. The total damage defined by the classes:

- Insignificant(I)
- Low(L)
- Medium(M)
- High(H)
- Very high (VH)

source

<xs:element name="degree_TotalDamageClass" type="fd:TotalDamageClass_Enum" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. The total damage defined by the classes:

- Insignificant(I)
- Low(L)
- Medium(M)
- High(H)
- Very high (VH)</xs:documentation>
</xs:annotation>
</xs:element>

element CulturalHeritageDetail/degree_TotalDamageGDP

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

Optional. The total damage in percentage of the total GDP for the flood event. Can also be reported as a range. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="degree_TotalDamageGDP" type="fd:String50Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. The total damage in percentage of the total GDP for the flood event. Can also be reported as a range. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element CulturalHeritageDetail/typeCulturalHeritage

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeCulturalHeritage_Enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	B31 - Cultural Assets
enumeration	B32 - Landscape
enumeration	B33 - Other
enumeration	B34 - Not applicable

annotation

documentation

Required. Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

- B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.
- B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.
- B33=Other
- B34=Not applicable

source

<xs:element name="typeCulturalHeritage" type="fd:TypeCulturalHeritage_Enum">
<xs:annotation>
<xs:documentation>Required. Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

- B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.
- B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.
- B33=Other
- B34=Not applicable</xs:documentation>
</xs:annotation>
</xs:element>

element CulturalHeritageDetail/otherConsequenceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Optional. Only to be used if the type is set to 'Other' in the enumeration list

source

<xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
</xs:annotation>
</xs:element>

element CulturalHeritageDetail/otherDamageDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Optional. Other numerical measure indicative of degree of (potentially) adverse consequences

source

<xs:element name="otherDamageDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Other numerical measure indicative of degree of (potentially) adverse consequences</xs:documentation>
</xs:annotation>
</xs:element>

complexType EconomicActivity

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

TypeofPotentialConsequencesMethodology/EconomicActivity

source

<xs:complexType name="EconomicActivity">
<xs:sequence>
    <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on economic activity have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element EconomicActivity/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on economic activity have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).

source

<xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on economic activity have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).</xs:documentation>
</xs:annotation>
</xs:element>

complexType EconomicActivityDetail

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

degree_TotalDamage degree_TotalDamageClass degree_TotalDamageGDP typeEconomicActivity otherConsequenceDescription otherDamageDescription

used by

element

TypeofPotentialConsequences/EconomicActivityDetail

source

<xs:complexType name="EconomicActivityDetail">
<xs:sequence>
    <xs:element name="degree_TotalDamage" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage cost in Euros for the flood event. Can also be reported as a range. The exemption types - 9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="degree_TotalDamageClass" type="fd:TotalDamageClass_Enum" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage defined by the classes:

- Insignificant(I)
- Low(L)
- Medium(M)
- High(H)
- Very high (VH)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="degree_TotalDamageGDP" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage in percentage of the total GDP for the flood event. Can also be reported as a range. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="typeEconomicActivity" type="fd:TypeEconomicActivity_Enum">
      <xs:annotation>
        <xs:documentation>Required.

- B41 – Property
- B42 – Infrastructure
- B43 – Rural Land Use
- B44 – Economic Activity
- B45 – Other
- B46 – Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherDamageDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Other numerical measure indicative of degree of (potentially) adverse consequences</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element EconomicActivityDetail/degree_TotalDamage

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

Optional. The total damage cost in Euros for the flood event. Can also be reported as a range. The exemption types - 9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

element EconomicActivityDetail/degree_TotalDamageClass

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TotalDamageClass_Enum

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	H - High
enumeration	I - Insignificnt
enumeration	L - Low
enumeration	M - Medium
enumeration	NA - Not Applicable
enumeration	U - Unknown
enumeration	VH - Very high

annotation

documentation

Optional. The total damage defined by the classes:

- Insignificant(I)
- Low(L)
- Medium(M)
- High(H)
- Very high (VH)

source

element EconomicActivityDetail/degree_TotalDamageGDP

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

source

element EconomicActivityDetail/typeEconomicActivity

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeEconomicActivity_Enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	B41 - Property
enumeration	B42 - Infrastructure
enumeration	B43 - Rural Land Use
enumeration	B44 - Economic Activity
enumeration	B45 - Other
enumeration	B46 - Not applicable

annotation

documentation

Required.

- B41 – Property
- B42 – Infrastructure
- B43 – Rural Land Use
- B44 – Economic Activity
- B45 – Other
- B46 – Not applicable

source

<xs:element name="typeEconomicActivity" type="fd:TypeEconomicActivity_Enum">
<xs:annotation>
<xs:documentation>Required.

- B41 – Property
- B42 – Infrastructure
- B43 – Rural Land Use
- B44 – Economic Activity
- B45 – Other
- B46 – Not applicable</xs:documentation>
</xs:annotation>
</xs:element>

element EconomicActivityDetail/otherConsequenceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Optional. Only to be used if the type is set to 'Other' in the enumeration list

source

element EconomicActivityDetail/otherDamageDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Optional. Other numerical measure indicative of degree of (potentially) adverse consequences

source

complexType Environment

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

TypeofPotentialConsequencesMethodology/Environment

source

<xs:complexType name="Environment">
<xs:sequence>
    <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on the environment have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element Environment/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on the environment have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).

source

<xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on the environment have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).</xs:documentation>
</xs:annotation>
</xs:element>

complexType EnvironmentDetail

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

degree_TotalDamage degree_TotalDamageClass degree_TotalDamageGDP typeEnvironment otherConsequenceDescription otherDamageDescription

used by

element

TypeofPotentialConsequences/EnvironmentDetail

source

<xs:complexType name="EnvironmentDetail">
<xs:sequence>
    <xs:element name="degree_TotalDamage" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage cost in Euros for the flood event. Can also be reported as a range. The exemption types - 9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="degree_TotalDamageClass" type="fd:TotalDamageClass_Enum" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage defined by the classes:

- Insignificant(I)
- Low(L)
- Medium(M)
- High(H)
- Very high (VH)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="degree_TotalDamageGDP" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage in percentage of the total GDP for the flood event. Can also be reported as a range. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="typeEnvironment" type="fd:TypeEnvironment_Enum">
      <xs:annotation>
        <xs:documentation>Required. Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6). One or more options can be selected.

- B20
- B21 - Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.
- B22 - Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.
- B23 - Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.
- B24 - Other potential adverse environmental impacts, such as those on soil,biodiversity, flora and fauna, etc.

- B25 - Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Only to be used if the type is set to 'Other' in the enumeration list</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherDamageDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Other numerical measure indicative of degree of (potentially) adverse consequences</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element EnvironmentDetail/degree_TotalDamage

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

Optional. The total damage cost in Euros for the flood event. Can also be reported as a range. The exemption types - 9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

element EnvironmentDetail/degree_TotalDamageClass

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TotalDamageClass_Enum

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	H - High
enumeration	I - Insignificnt
enumeration	L - Low
enumeration	M - Medium
enumeration	NA - Not Applicable
enumeration	U - Unknown
enumeration	VH - Very high

annotation

documentation

Optional. The total damage defined by the classes:

- Insignificant(I)
- Low(L)
- Medium(M)
- High(H)
- Very high (VH)

source

element EnvironmentDetail/degree_TotalDamageGDP

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

source

element EnvironmentDetail/typeEnvironment

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeEnvironment_Enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	B21 - Waterbody Status
enumeration	B22 - Protected Areas
enumeration	B23 - Pollution Sources
enumeration	B24 - Other potential adverse environmental impacts
enumeration	B25 - Not applicable

annotation

documentation

Required. Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6). One or more options can be selected.

- B20
- B21 - Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.
- B22 - Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.
- B23 - Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.
- B24 - Other potential adverse environmental impacts, such as those on soil,biodiversity, flora and fauna, etc.

- B25 - Not applicable

source

<xs:element name="typeEnvironment" type="fd:TypeEnvironment_Enum">
<xs:annotation>
<xs:documentation>Required. Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6). One or more options can be selected.

- B20
- B21 - Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.
- B22 - Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.
- B23 - Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.
- B24 - Other potential adverse environmental impacts, such as those on soil,biodiversity, flora and fauna, etc.

- B25 - Not applicable</xs:documentation>
</xs:annotation>
</xs:element>

element EnvironmentDetail/otherConsequenceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Optional. Only to be used if the type is set to 'Other' in the enumeration list

source

element EnvironmentDetail/otherDamageDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Optional. Other numerical measure indicative of degree of (potentially) adverse consequences

source

complexType FloodData

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

categoryOfFlood dateOfCommencement durationOfFlood recurrence frecuency area length reference FloodLocation TypeofFlood

used by

element

FloodEventInformation/FloodData

source

element FloodData/categoryOfFlood

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

CategoryFloods_Enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Past flood
enumeration	Potential future floods

annotation

documentation

Required. can either be:

- Past flood

- Potential future flood

source

<xs:element name="categoryOfFlood" type="fd:CategoryFloods_Enum">
<xs:annotation>
<xs:documentation>Required. can either be:

- Past flood

- Potential future flood</xs:documentation>
</xs:annotation>
</xs:element>

element FloodData/dateOfCommencement

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

DateTypeYearType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Conditional. If the answer to CategoryFlood is 'past flood' then give the date of commencement of the flood. Can be in the format 'yyyy' , 'yyyy-mm' and 'yyyy-mm-dd'

source

<xs:element name="dateOfCommencement" type="fd:DateTypeYearType" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If the answer to CategoryFlood is 'past flood' then give the date of commencement of the flood. Can be in the format 'yyyy' , 'yyyy-mm' and 'yyyy-mm-dd'</xs:documentation>
</xs:annotation>
</xs:element>

element FloodData/durationOfFlood

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberDecimalType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Conditional. If the answer to CategoryFlood is 'past flood' then give the number of days/part days (duration) of the flood. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="durationOfFlood" type="fd:NumberDecimalType" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If the answer to CategoryFlood is 'past flood' then give the number of days/part days (duration) of the flood. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodData/recurrence

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

Required. The average number of years between floods of a certain size. Can also be reported as a range. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="recurrence" type="fd:String50Type">
<xs:annotation>
<xs:documentation>Required. The average number of years between floods of a certain size. Can also be reported as a range. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodData/frecuency

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

Conditional. The statistical prediction of years between certain flood magnitude events. Can also be reported as a range, as a return period (e.g. once in every 100 years) or an annual exceedance probability (the percentage chance of a flood of a certain size happening in any year). The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used. Please state clearly whether reporting as a range, return period or annual exceedance probability.

source

<xs:element name="frecuency" type="fd:String50Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. The statistical prediction of years between certain flood magnitude events. Can also be reported as a range, as a return period (e.g. once in every 100 years) or an annual exceedance probability (the percentage chance of a flood of a certain size happening in any year). The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used. Please state clearly whether reporting as a range, return period or annual exceedance probability.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodData/area

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberDecimalType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Optional. Extent of land inundated. Indicate the total area in km2.

source

<xs:element name="area" type="fd:NumberDecimalType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Extent of land inundated. Indicate the total area in km2. </xs:documentation>
</xs:annotation>
</xs:element>

element FloodData/length

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberDecimalType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Optional. Inundated length of river stretches or coasts. Indicate the total length in km.

source

<xs:element name="length" type="fd:NumberDecimalType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Inundated length of river stretches or coasts. Indicate the total length in km.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodData/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Optional. Provide document(s) or link(s) to any other relevant information relating to the details of the specific flood event. This could include links to specific reports or articles and/or specific details of the particular event.

source

<xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Optional. Provide document(s) or link(s) to any other relevant information relating to the details of the specific flood event. This could include links to specific reports or articles and/or specific details of the particular event.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodData/FloodLocation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FloodLocation

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

euSurfaceWaterBodyCode floodLocationCode floodLocationName crossBorderFloodLocationCode apsfrCode reference TypeofPotentialConsequences CrossBorder

source

<xs:element name="FloodLocation" type="FloodLocation" maxOccurs="unbounded"/>

element FloodData/TypeofFlood

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeofFlood

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

sourceOfFlooding otherSourceDescription sourceUncertainDescription mechanismOfFlooding otherMechanismDescription mechanismUncertainDescription characteristicsOfFlooding otherCharacteristicsDescription characteristicsUncertainDescription reference

source

<xs:element name="TypeofFlood" type="TypeofFlood" maxOccurs="unbounded"/>

complexType FloodEventInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

floodEventCode nameOfFloodEvent FloodData

used by

element

PFRAInformation/FloodEventInformation

source

<xs:complexType name="FloodEventInformation">
<xs:sequence>
    <xs:element name="floodEventCode" type="fd:FeatureUniqueCodeType">
      <xs:annotation>
        <xs:documentation>Required. Unique code for the flood event – up to 40 characters in total.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="nameOfFloodEvent" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Name of the flood event.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="FloodData" type="FloodData"/>
</xs:sequence>
</xs:complexType>

element FloodEventInformation/floodEventCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueCodeType

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

annotation

documentation

Required. Unique code for the flood event – up to 40 characters in total.

source

<xs:element name="floodEventCode" type="fd:FeatureUniqueCodeType">
<xs:annotation>
<xs:documentation>Required. Unique code for the flood event – up to 40 characters in total.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodEventInformation/nameOfFloodEvent

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Optional. Name of the flood event.

source

<xs:element name="nameOfFloodEvent" type="fd:String250Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Name of the flood event.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodEventInformation/FloodData

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FloodData

properties

isRef	0
content	complex

children

categoryOfFlood dateOfCommencement durationOfFlood recurrence frecuency area length reference FloodLocation TypeofFlood

source

<xs:element name="FloodData" type="FloodData"/>

complexType FloodLocation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

euSurfaceWaterBodyCode floodLocationCode floodLocationName crossBorderFloodLocationCode apsfrCode reference TypeofPotentialConsequences CrossBorder

used by

element

FloodData/FloodLocation

source

<xs:complexType name="FloodLocation">
<xs:sequence>
    <xs:element name="euSurfaceWaterBodyCode" type="fd:FeatureUniqueEUCodeType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Optional. Unique code for the Water Body used under the WFD. If the EUSurfaceWaterBodyCode is reported as a representation of the flood location no spatial data needs to be reported as this information is already reported under the WFD. If several Water Bodies are affected by one flood location they should be reported here (hence this element is unbounded)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="floodLocationCode" type="fd:FeatureUniqueCodeTypeEX">
      <xs:annotation>
        <xs:documentation>Required. Unique code for the flood location - up to 40 characters in total. Can also be used as an identifier for multiple surface water bodies designated under the WFD which the flood location is represented by. A polygon/line/point can be reported as a representation of the flood location to establish link between spatial feature (eg. polygon) and information in xml schema. Possible to use the exemptions -9999=Unknown, -8888=Yet to be measured, - 7777=Not Applicable.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="floodLocationName" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Name of the locality, river basin, sub-basin and/or coastal area or other areas associated with the flood</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="crossBorderFloodLocationCode" type="fd:FeatureUniqueEUCodeType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If the flood location crosses the border to either a national or international unit of management please indicate the unique code for the related flood location. The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="apsfrCode" type="fd:FeatureUniqueEUCodeType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Unique EU code for the area of potential significant flood risk. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Optional. Provide document(s) or link(s) to any other relevant information relating to location if the flood event. This may include details of multiple flood locations covering large flood event scenarios.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="TypeofPotentialConsequences" type="TypeofPotentialConsequences" maxOccurs="unbounded"/>
    <xs:element name="CrossBorder" type="CrossBorder"/>
</xs:sequence>
</xs:complexType>

element FloodLocation/euSurfaceWaterBodyCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueEUCodeType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
minLength	3
maxLength	42

annotation

documentation

Optional. Unique code for the Water Body used under the WFD. If the EUSurfaceWaterBodyCode is reported as a representation of the flood location no spatial data needs to be reported as this information is already reported under the WFD. If several Water Bodies are affected by one flood location they should be reported here (hence this element is unbounded)

source

<xs:element name="euSurfaceWaterBodyCode" type="fd:FeatureUniqueEUCodeType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Optional. Unique code for the Water Body used under the WFD. If the EUSurfaceWaterBodyCode is reported as a representation of the flood location no spatial data needs to be reported as this information is already reported under the WFD. If several Water Bodies are affected by one flood location they should be reported here (hence this element is unbounded)</xs:documentation>
</xs:annotation>
</xs:element>

element FloodLocation/floodLocationCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueCodeTypeEX

properties

isRef	0
content	simple

annotation

documentation

Required. Unique code for the flood location - up to 40 characters in total. Can also be used as an identifier for multiple surface water bodies designated under the WFD which the flood location is represented by. A polygon/line/point can be reported as a representation of the flood location to establish link between spatial feature (eg. polygon) and information in xml schema. Possible to use the exemptions -9999=Unknown, -8888=Yet to be measured, - 7777=Not Applicable.

source

<xs:element name="floodLocationCode" type="fd:FeatureUniqueCodeTypeEX">
<xs:annotation>
<xs:documentation>Required. Unique code for the flood location - up to 40 characters in total. Can also be used as an identifier for multiple surface water bodies designated under the WFD which the flood location is represented by. A polygon/line/point can be reported as a representation of the flood location to establish link between spatial feature (eg. polygon) and information in xml schema. Possible to use the exemptions -9999=Unknown, -8888=Yet to be measured, - 7777=Not Applicable.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodLocation/floodLocationName

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Optional. Name of the locality, river basin, sub-basin and/or coastal area or other areas associated with the flood

source

<xs:element name="floodLocationName" type="fd:String250Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Name of the locality, river basin, sub-basin and/or coastal area or other areas associated with the flood</xs:documentation>
</xs:annotation>
</xs:element>

element FloodLocation/crossBorderFloodLocationCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueEUCodeType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	3
maxLength	42

annotation

documentation

Conditional. If the flood location crosses the border to either a national or international unit of management please indicate the unique code for the related flood location. The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

<xs:element name="crossBorderFloodLocationCode" type="fd:FeatureUniqueEUCodeType" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If the flood location crosses the border to either a national or international unit of management please indicate the unique code for the related flood location. The exception types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodLocation/apsfrCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueEUCodeType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	3
maxLength	42

annotation

documentation

Optional. Unique EU code for the area of potential significant flood risk. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total

source

<xs:element name="apsfrCode" type="fd:FeatureUniqueEUCodeType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Unique EU code for the area of potential significant flood risk. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total</xs:documentation>
</xs:annotation>
</xs:element>

element FloodLocation/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Optional. Provide document(s) or link(s) to any other relevant information relating to location if the flood event. This may include details of multiple flood locations covering large flood event scenarios.

source

<xs:element name="reference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Optional. Provide document(s) or link(s) to any other relevant information relating to location if the flood event. This may include details of multiple flood locations covering large flood event scenarios.</xs:documentation>
</xs:annotation>
</xs:element>

element FloodLocation/TypeofPotentialConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeofPotentialConsequences

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

CulturalHeritageDetail EnvironmentDetail HumanHealthSocialDetail EconomicActivityDetail

source

<xs:element name="TypeofPotentialConsequences" type="TypeofPotentialConsequences" maxOccurs="unbounded"/>

element FloodLocation/CrossBorder

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

CrossBorder

properties

isRef	0
content	complex

children

crossBorderRelationship crossBorderRelationshipDescription

source

<xs:element name="CrossBorder" type="CrossBorder"/>

complexType HumanHealthSocial

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

TypeofPotentialConsequencesMethodology/HumanHealthSocial

source

<xs:complexType name="HumanHealthSocial">
<xs:sequence>
    <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on human health have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element HumanHealthSocial/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on human health have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).

source

<xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide document(s) or link(s) detailing methodologies used for assessing how the levels of past adverse impacts or potential adverse consequences on human health have been defined. References may include descriptions of approaches and available data used in the assessment. Note that generic approaches only are required (i.e. not related to specific flood events).</xs:documentation>
</xs:annotation>
</xs:element>

complexType HumanHealthSocialDetail

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

degree_TotalDamage degree_TotalDamageClass degree_TotalDamageGDP fatalities typeHumanHealth otherConsequenceDescription otherDamageDescription

used by

element

TypeofPotentialConsequences/HumanHealthSocialDetail

source

<xs:complexType name="HumanHealthSocialDetail">
<xs:sequence>
    <xs:element name="degree_TotalDamage" type="fd:String50Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage cost in Euros for the flood event. Can also be reported as a range. The exemption types - 9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="degree_TotalDamageClass" type="fd:TotalDamageClass_Enum" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. The total damage defined by the classes:

- Insignificant(I)
- Low(L)
- Medium(M)
- High(H)
- Very high (VH)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="degree_TotalDamageGDP" type="fd:String50Type">
      <xs:annotation>
        <xs:documentation>Optional. The total damage in percentage of the total GDP for the flood event. Can also be reported as a range. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="fatalities" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Only for past floods. If possible indicate number of individuals fatality affected as direct consequence of flood</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="typeHumanHealth" type="fd:TypeHumanHealth_Enum">
      <xs:annotation>
        <xs:documentation>Required. Define relevant type of Consequences. The list is in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

- B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.
- B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

- B13=Other
- B14=Not applicable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Other numerical measure indicative of degree of (potentially) adverse consequences</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherDamageDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Optional. Other numerical measure indicative of degree of (potentially) adverse consequences</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element HumanHealthSocialDetail/degree_TotalDamage

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

Optional. The total damage cost in Euros for the flood event. Can also be reported as a range. The exemption types - 9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.

source

element HumanHealthSocialDetail/degree_TotalDamageClass

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TotalDamageClass_Enum

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
enumeration	H - High
enumeration	I - Insignificnt
enumeration	L - Low
enumeration	M - Medium
enumeration	NA - Not Applicable
enumeration	U - Unknown
enumeration	VH - Very high

annotation

documentation

Optional. The total damage defined by the classes:

- Insignificant(I)
- Low(L)
- Medium(M)
- High(H)
- Very high (VH)

source

element HumanHealthSocialDetail/degree_TotalDamageGDP

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String50Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

source

<xs:element name="degree_TotalDamageGDP" type="fd:String50Type">
<xs:annotation>
<xs:documentation>Optional. The total damage in percentage of the total GDP for the flood event. Can also be reported as a range. The exemption types -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable can be used.</xs:documentation>
</xs:annotation>
</xs:element>

element HumanHealthSocialDetail/fatalities

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

NumberNonNegativeIntegerType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Optional. Only for past floods. If possible indicate number of individuals fatality affected as direct consequence of flood

source

<xs:element name="fatalities" type="fd:NumberNonNegativeIntegerType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Only for past floods. If possible indicate number of individuals fatality affected as direct consequence of flood</xs:documentation>
</xs:annotation>
</xs:element>

element HumanHealthSocialDetail/typeHumanHealth

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeHumanHealth_Enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	B11 - Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.
enumeration	B12 - Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).
enumeration	B13 - Other
enumeration	B14 - Not applicaple
enumeration	B10

annotation

documentation

Required. Define relevant type of Consequences. The list is in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

- B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.
- B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

- B13=Other
- B14=Not applicable

source

<xs:element name="typeHumanHealth" type="fd:TypeHumanHealth_Enum">
<xs:annotation>
<xs:documentation>Required. Define relevant type of Consequences. The list is in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

- B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.
- B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

- B13=Other
- B14=Not applicable</xs:documentation>
</xs:annotation>
</xs:element>

element HumanHealthSocialDetail/otherConsequenceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String250Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

Optional. Other numerical measure indicative of degree of (potentially) adverse consequences

source

<xs:element name="otherConsequenceDescription" type="fd:String250Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Other numerical measure indicative of degree of (potentially) adverse consequences</xs:documentation>
</xs:annotation>
</xs:element>

element HumanHealthSocialDetail/otherDamageDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Optional. Other numerical measure indicative of degree of (potentially) adverse consequences

source

complexType OtherRelevantInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

otherRelevantInformationReference

used by

element

PFRASummaryInformation/OtherRelevantInformation

source

<xs:complexType name="OtherRelevantInformation">
<xs:sequence>
    <xs:element name="otherRelevantInformationReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Optional. Provide document(s) or link(s) to any other relevant available or readily derivable information used in the PFRA.</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element OtherRelevantInformation/otherRelevantInformationReference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Optional. Provide document(s) or link(s) to any other relevant available or readily derivable information used in the PFRA.

source

<xs:element name="otherRelevantInformationReference" type="fd:ReferenceType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Optional. Provide document(s) or link(s) to any other relevant available or readily derivable information used in the PFRA.</xs:documentation>
</xs:annotation>
</xs:element>

complexType OverallApproachReview_Article14.1

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

PFRASummaryInformation/OverallApproachReview_Article14.1

source

<xs:complexType name="OverallApproachReview_Article14.1">
<xs:sequence>
    <xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide a reference or references describing how the review process to the overall approach and methodology applied to undertake the PFRA has been undertaken and, where relavant, what changes have been implemented in the second cycle of reporting. An overview is required here not specific details relating to particular flood events or locations.</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element OverallApproachReview_Article14.1/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

annotation

documentation

Required. Provide a reference or references describing how the review process to the overall approach and methodology applied to undertake the PFRA has been undertaken and, where relavant, what changes have been implemented in the second cycle of reporting. An overview is required here not specific details relating to particular flood events or locations.

source

<xs:element name="reference" type="fd:ReferenceType" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide a reference or references describing how the review process to the overall approach and methodology applied to undertake the PFRA has been undertaken and, where relavant, what changes have been implemented in the second cycle of reporting. An overview is required here not specific details relating to particular flood events or locations.</xs:documentation>
</xs:annotation>
</xs:element>

complexType PFRA

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

c_Cd euUoMCode metadata url PFRAInformation Sub-UoMAreas

Required. To be provided as year, month, date (e.g. “2012-03-20”)

Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))

xs:string

optional

documentation

Optional. For example “frmplanning@sepa.org.uk”

Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.

Optional. For example: “Floods Directive Provisional Flood Risk Assessment Information”

Optional. For example “ Through the use of an IT database system using Oracle scripts”

classificationCode

DataConfidentialityClassificationCode_Enum

optional

documentation

Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only

annotation

documentation

Reporting requirement for Article 4 of the Floods Directive. Requires the Member States to undertake a Preliminary Flood Risk Assessment (PFRA) for each river basin district, unit of management or the portion of an international river basin district or unit of management lying within their territory.

source

attribute PFRA/@creationDate

type

xs:string

properties

isRef	0
use	required

annotation

documentation

Required. To be provided as year, month, date (e.g. “2012-03-20”)

source

<xs:attribute name="creationDate" type="xs:string" use="required">
<xs:annotation>
<xs:documentation>Required. To be provided as year, month, date (e.g. “2012-03-20”)</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute PFRA/@creator

type

xs:string

properties

isRef	0
use	required

annotation

documentation

Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))

source

<xs:attribute name="creator" type="xs:string" use="required">
<xs:annotation>
<xs:documentation>Required. Competent Authority responsible for providing the information (e.g. “SEPA” (Scottish Environmental Protection Agency))</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute PFRA/@email

type

xs:string

properties

isRef	0
use	optional

annotation

documentation

Optional. For example “frmplanning@sepa.org.uk”

source

<xs:attribute name="email" type="xs:string" use="optional">
<xs:annotation>
<xs:documentation>Optional. For example “frmplanning@sepa.org.uk”</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute PFRA/@language

type

LanguageCode_Enum

properties

isRef	0
use	required

facets

Kind	Value	annotation
enumeration	bg
enumeration	es
enumeration	cs
enumeration	da
enumeration	de
enumeration	et
enumeration	el
enumeration	en
enumeration	fr
enumeration	ga
enumeration	hr
enumeration	ic
enumeration	it
enumeration	lv
enumeration	lt
enumeration	hu
enumeration	mt
enumeration	nl
enumeration	no
enumeration	pl
enumeration	pt
enumeration	ro
enumeration	sk
enumeration	sl
enumeration	sr
enumeration	tr
enumeration	fi
enumeration	sv

annotation

documentation

Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.

source

<xs:attribute name="language" type="fd:LanguageCode_Enum" use="required">
<xs:annotation>
<xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute PFRA/@description

type

xs:string

properties

isRef	0
use	optional

annotation

documentation

Optional. For example: “Floods Directive Provisional Flood Risk Assessment Information”

source

<xs:attribute name="description" type="xs:string" use="optional">
<xs:annotation>
<xs:documentation>Optional. For example: “Floods Directive Provisional Flood Risk Assessment Information”</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute PFRA/@generatedBy

type

xs:string

properties

isRef	0
use	optional

annotation

documentation

Optional. For example “ Through the use of an IT database system using Oracle scripts”

source

<xs:attribute name="generatedBy" type="xs:string" use="optional">
<xs:annotation>
<xs:documentation>Optional. For example “ Through the use of an IT database system using Oracle scripts”</xs:documentation>
</xs:annotation>
</xs:attribute>

attribute PFRA/@classificationCode

type

DataConfidentialityClassificationCode_Enum

properties

isRef	0
use	optional

facets

Kind	Value	annotation
enumeration	001 - Unclassified
enumeration	003 - Confidential

annotation

documentation

Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only

source

<xs:attribute name="classificationCode" type="fd:DataConfidentialityClassificationCode_Enum" use="optional">
<xs:annotation>
<xs:documentation>Codes for data security classification:

- 001 – Unclassified – available for general circulation and public
- 003 – Confidential – available for EC reporting only</xs:documentation>
</xs:annotation>
</xs:attribute>

element PFRA/c_Cd

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

CountryCode_enum

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	AT
enumeration	BE
enumeration	BG
enumeration	CH
enumeration	CZ
enumeration	CY
enumeration	DE
enumeration	DK
enumeration	EE
enumeration	EL
enumeration	ES
enumeration	FI
enumeration	FR
enumeration	HR
enumeration	HU
enumeration	IE
enumeration	IS
enumeration	IT
enumeration	LT
enumeration	LU
enumeration	LV
enumeration	MT
enumeration	NO
enumeration	NL
enumeration	PL
enumeration	PT
enumeration	RO
enumeration	SE
enumeration	SI
enumeration	SK
enumeration	TR
enumeration	UK

annotation

documentation

Required. Two-letter ISO Country code. Select relevant code from enumeration list provided.

source

<xs:element name="c_Cd" type="fd:CountryCode_enum">
<xs:annotation>
<xs:documentation>Required. Two-letter ISO Country code. Select relevant code from enumeration list provided. </xs:documentation>
</xs:annotation>
</xs:element>

element PFRA/euUoMCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueEUCodeType

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	3
maxLength	42

annotation

documentation

Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total. If unit of management is the same as the WFD RBD please use the EURBDCode as the unit of management.

source

<xs:element name="euUoMCode" type="fd:FeatureUniqueEUCodeType">
<xs:annotation>
<xs:documentation>Required. Unique EU code for the Unit of Management. Add the two-letter ISO Country code to the Member State unique id - up to 42 characters in total. If unit of management is the same as the WFD RBD please use the EURBDCode as the unit of management.</xs:documentation>
</xs:annotation>
</xs:element>

element PFRA/metadata

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String2000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	2000

annotation

documentation

Optional. Hyperlink or reference to associated metadata statement or file. This allows up to 2000 characters to be specified or alternatively may be used to provide a hyperlink or description of an associated metadata file. This should be used to define any restrictions on the data

source

<xs:element name="metadata" type="fd:String2000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Hyperlink or reference to associated metadata statement or file. This allows up to 2000 characters to be specified or alternatively may be used to provide a hyperlink or description of an associated metadata file. This should be used to define any restrictions on the data</xs:documentation>
</xs:annotation>
</xs:element>

element PFRA/url

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

xs:anyURI

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

Optional. URL for integration of your own internet-based information

source

<xs:element name="url" type="xs:anyURI" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. URL for integration of your own internet-based information</xs:documentation>
</xs:annotation>
</xs:element>

element PFRA/PFRAInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

PFRAInformation

properties

isRef	0
content	complex

children

PFRASummaryInformation FloodEventInformation TypeofFloodUoM TypeofPotentialConsequencesMethodology Sub-UoMAreas

source

<xs:element name="PFRAInformation" type="PFRAInformation"/>

element PFRA/Sub-UoMAreas

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Sub-UoMAreas

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Sub-UoMAreas

source

<xs:element name="Sub-UoMAreas" type="Sub-UoMAreas" minOccurs="0"/>

complexType PFRAInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

PFRASummaryInformation FloodEventInformation TypeofFloodUoM TypeofPotentialConsequencesMethodology Sub-UoMAreas

<xs:complexType name="PFRAInformation">
<xs:sequence>
    <xs:element name="PFRASummaryInformation" type="PFRASummaryInformation" maxOccurs="unbounded"/>
    <xs:element name="FloodEventInformation" type="FloodEventInformation" maxOccurs="unbounded"/>
    <xs:element name="TypeofFloodUoM" type="TypeofFloodUoM" maxOccurs="unbounded"/>
    <xs:element name="TypeofPotentialConsequencesMethodology" type="TypeofPotentialConsequencesMethodology"/>
    <xs:element name="Sub-UoMAreas" type="Sub-UoMAreas" minOccurs="0"/>
</xs:sequence>
</xs:complexType>

element PFRAInformation/PFRASummaryInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

PFRASummaryInformation

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

article4.3InternationalUoM article2.1SewagesystemsExcluded Article4.2_b_PastAdverseConsequences Article4.2_a_Maps Article4.2_c_SignificantAdverseConsequences Article4.3InternationalInformationExchange OtherRelevantInformation Article4.2_d_PotentialAdverseConsequences Article14.4ConsiderationOfClimateChange OverallApproachReview_Article14.1 Article4.2_d_Issues

source

<xs:element name="PFRASummaryInformation" type="PFRASummaryInformation" maxOccurs="unbounded"/>

element PFRAInformation/FloodEventInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FloodEventInformation

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

floodEventCode nameOfFloodEvent FloodData

source

<xs:element name="FloodEventInformation" type="FloodEventInformation" maxOccurs="unbounded"/>

element PFRAInformation/TypeofFloodUoM

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeofFloodUoM

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

sourceOfFlooding otherSourceDescription sourceUncertainDescription

source

<xs:element name="TypeofFloodUoM" type="TypeofFloodUoM" maxOccurs="unbounded"/>

element PFRAInformation/TypeofPotentialConsequencesMethodology

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

TypeofPotentialConsequencesMethodology

properties

isRef	0
content	complex

children

Environment EconomicActivity CulturalHeritage HumanHealthSocial

source

<xs:element name="TypeofPotentialConsequencesMethodology" type="TypeofPotentialConsequencesMethodology"/>

element PFRAInformation/Sub-UoMAreas

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Sub-UoMAreas

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Sub-UoMAreas

source

<xs:element name="Sub-UoMAreas" type="Sub-UoMAreas" minOccurs="0"/>

complexType PFRASummaryInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

used by

element

PFRAInformation/PFRASummaryInformation

source

element PFRASummaryInformation/article4.3InternationalUoM

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Required. Is the UoM international?

- Yes
- No

source

<xs:element name="article4.3InternationalUoM" type="fd:YesNoCode">
<xs:annotation>
<xs:documentation>Required. Is the UoM international?

- Yes
- No</xs:documentation>
</xs:annotation>
</xs:element>

element PFRASummaryInformation/article2.1SewagesystemsExcluded

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

YesNoCode

properties

isRef	0
content	simple

facets

Kind	Value	annotation
enumeration	Y
enumeration	N
enumeration

annotation

documentation

Required. State whether floods from sewage systems have been excluded as a source of flooding

- Yes
- No

source

<xs:element name="article2.1SewagesystemsExcluded" type="fd:YesNoCode">
<xs:annotation>
<xs:documentation>Required. State whether floods from sewage systems have been excluded as a source of flooding

- Yes
- No</xs:documentation>
</xs:annotation>
</xs:element>

element PFRASummaryInformation/Article4.2_b_PastAdverseConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Article4.2_b_PastAdverseConsequences

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

criteriaUsed expertJudgementDescription criteriaOther reference

source

<xs:element name="Article4.2_b_PastAdverseConsequences" type="Article4.2_b_PastAdverseConsequences" maxOccurs="unbounded"/>

element PFRASummaryInformation/Article4.2_a_Maps

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Article4.2_a_Maps

properties

isRef	0
content	complex

children

article4.2_a_MapsAvailable description reference

source

<xs:element name="Article4.2_a_Maps" type="Article4.2_a_Maps"/>

element PFRASummaryInformation/Article4.2_c_SignificantAdverseConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Article4.2_c_SignificantAdverseConsequences

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

criteriaUsed expertJudgementDescription criteriaOther reference

source

<xs:element name="Article4.2_c_SignificantAdverseConsequences" type="Article4.2_c_SignificantAdverseConsequences" maxOccurs="unbounded"/>

element PFRASummaryInformation/Article4.3InternationalInformationExchange

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Article4.3InternationalInformationExchange

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

informationExchange exchangeMechanismsNotConsidered otherInternationalInformationExchange reference

source

<xs:element name="Article4.3InternationalInformationExchange" type="Article4.3InternationalInformationExchange" minOccurs="0" maxOccurs="unbounded"/>

element PFRASummaryInformation/OtherRelevantInformation

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

OtherRelevantInformation

properties

isRef	0
content	complex

children

otherRelevantInformationReference

source

<xs:element name="OtherRelevantInformation" type="OtherRelevantInformation"/>

element PFRASummaryInformation/Article4.2_d_PotentialAdverseConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Article4.2_d_PotentialAdverseConsequences

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

criteriaUsed expertJudgementDescription criteriaOther reference

source

<xs:element name="Article4.2_d_PotentialAdverseConsequences" type="Article4.2_d_PotentialAdverseConsequences" maxOccurs="unbounded"/>

element PFRASummaryInformation/Article14.4ConsiderationOfClimateChange

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Article14.4ConsiderationOfClimateChange

properties

isRef	0
content	complex

children

climateChangeConsidered climateChangeNotConsideredExplanation reference

source

<xs:element name="Article14.4ConsiderationOfClimateChange" type="Article14.4ConsiderationOfClimateChange"/>

element PFRASummaryInformation/OverallApproachReview_Article14.1

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

OverallApproachReview_Article14.1

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	complex

children

reference

source

<xs:element name="OverallApproachReview_Article14.1" type="OverallApproachReview_Article14.1" maxOccurs="unbounded"/>

element PFRASummaryInformation/Article4.2_d_Issues

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Article4.2_d_Issues

properties

isRef	0
content	complex

children

issues reference

source

<xs:element name="Article4.2_d_Issues" type="Article4.2_d_Issues"/>

complexType Sub-UoMAreas

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

PFRAInformation/Sub-UoMAreas PFRA/Sub-UoMAreas Sub-UoMAreas/Sub-UoMAreas

source

<xs:complexType name="Sub-UoMAreas">
<xs:sequence>
<xs:element name="Sub-UoMAreas" type="Sub-UoMAreas" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>

element Sub-UoMAreas/Sub-UoMAreas

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Sub-UoMAreas

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	complex

children

Sub-UoMAreas

source

<xs:element name="Sub-UoMAreas" type="Sub-UoMAreas" minOccurs="0" maxOccurs="unbounded"/>

complexType Sub-UoMAreasType

diagram
namespace	http://water.eionet.europa.eu/schemas/dir200760ec
children	sub-UoMCode nameofSub-UoMArea
source	<xs:complexType name="Sub-UoMAreasType"> <xs:sequence> <xs:element name="sub-UoMCode" type="fd:FeatureUniqueCodeType" minOccurs="0"> <xs:annotation> <xs:documentation>Optional. Unique code for the specific area - up to 50 characters in total. To be used to establish link between spatial feature (polygon/line/point) and information in xml schema. Each specific area MUST be unequivocally connected to a UoM, or UoMs, if it intersects more than one.</xs:documentation> </xs:annotation> </xs:element> <xs:element name="nameofSub-UoMArea" type="fd:FeatureUniqueCodeType" minOccurs="0"> <xs:annotation> <xs:documentation>Optional. Name of the sub-UoM area (e.g of a locality, river basin and/or coastal area or other areas under a specific jurisdiction).</xs:documentation> </xs:annotation> </xs:element> </xs:sequence> </xs:complexType>

element Sub-UoMAreasType/sub-UoMCode

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueCodeType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

annotation

documentation

Optional. Unique code for the specific area - up to 50 characters in total. To be used to establish link between spatial feature (polygon/line/point) and information in xml schema. Each specific area MUST be unequivocally connected to a UoM, or UoMs, if it intersects more than one.

source

<xs:element name="sub-UoMCode" type="fd:FeatureUniqueCodeType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Unique code for the specific area - up to 50 characters in total. To be used to establish link between spatial feature (polygon/line/point) and information in xml schema. Each specific area MUST be unequivocally connected to a UoM, or UoMs, if it intersects more than one.</xs:documentation>
</xs:annotation>
</xs:element>

element Sub-UoMAreasType/nameofSub-UoMArea

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

FeatureUniqueCodeType

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

annotation

documentation

Optional. Name of the sub-UoM area (e.g of a locality, river basin and/or coastal area or other areas under a specific jurisdiction).

source

<xs:element name="nameofSub-UoMArea" type="fd:FeatureUniqueCodeType" minOccurs="0">
<xs:annotation>
<xs:documentation>Optional. Name of the sub-UoM area (e.g of a locality, river basin and/or coastal area or other areas under a specific jurisdiction).</xs:documentation>
</xs:annotation>
</xs:element>

complexType TypeofFlood

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

used by

element

FloodData/TypeofFlood

source

element TypeofFlood/sourceOfFlooding

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

SourceofFlooding_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	A11 - Fluvial
enumeration	A12 - Pluvial
enumeration	A13 - Groundwater
enumeration	A14 - Sea Water
enumeration	A15 - Artificial Water-Bearing Infrastructure
enumeration	A16 - Other: Flooding of land by water due to other sources, can include other tsunamis.
enumeration	A17 - No data available on the source of flooding
enumeration	A18 - Source of flooding uncertain

annotation

documentation

Required. Provide information on the specific sources of flooding to which Article 4 has been applied (one or more options can be selected).

- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.
- A17=No data available on the source of flooding

- A18=Source of flooding uncertain

source

<xs:element name="sourceOfFlooding" type="fd:SourceofFlooding_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide information on the specific sources of flooding to which Article 4 has been applied (one or more options can be selected).

- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.
- A17=No data available on the source of flooding

- A18=Source of flooding uncertain</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFlood/otherSourceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘A16=Other: Flooding of land by water due to other sources, can include other tsunamisr’ selected from enumeration list provide a description of the other source(s)

source

<xs:element name="otherSourceDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘A16=Other: Flooding of land by water due to other sources, can include other tsunamisr’ selected from enumeration list provide a description of the other source(s)</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFlood/sourceUncertainDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘A18=Source of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty

source

<xs:element name="sourceUncertainDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘A18=Source of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFlood/mechanismOfFlooding

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

MechanismofFlooding_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	A21 - Natural Exceedance
enumeration	A22 - Defence Exceedance
enumeration	A23 - Defence or Infrastructural Failure
enumeration	A24 - Blockage / Restriction
enumeration	A25 - Other
enumeration	A26 - No data available on the mechanism of flooding
enumeration	A27 - Mechanism of flooding uncertain

annotation

documentation

Conditional. For each flood event indicate the mechanism of flooding (one or more options can be selected).

- A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.
- A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.
- A23=Defence or Infrastructural Failure: Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.
- A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or landslides.
- A25=Other: Flooding of land by water due to other mechanisms, for instance wind setup floods.
- A26= No data available on the mechanism of flooding

- A27=Mechanism of flooding uncertain

source

<xs:element name="mechanismOfFlooding" type="fd:MechanismofFlooding_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. For each flood event indicate the mechanism of flooding (one or more options can be selected).

- A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.
- A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.
- A23=Defence or Infrastructural Failure: Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.
- A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or landslides.
- A25=Other: Flooding of land by water due to other mechanisms, for instance wind setup floods.
- A26= No data available on the mechanism of flooding

- A27=Mechanism of flooding uncertain</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFlood/otherMechanismDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘A25=Other’ selected from enumeration list provide a description of the other mechanism(s)

source

<xs:element name="otherMechanismDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘A25=Other’ selected from enumeration list provide a description of the other mechanism(s)</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFlood/mechanismUncertainDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘A27=Mechanism of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty

source

<xs:element name="mechanismUncertainDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘A27=Mechanism of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFlood/characteristicsOfFlooding

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

CharacteristicsofFlooding_Enum

properties

isRef	0
minOcc	0
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	A31 - Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
enumeration	A32 - Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
enumeration	A33 - Other rapid onset: A flood which develops quickly, other than a flash flood .
enumeration	A34 - Medium onset flood: An onset of flooding that occurs at a slower rate than a flash flood.
enumeration	A35 - Slow onset flood: A flood which takes a longer time to develop.
enumeration	A36 - Debris Flow: A flood conveying a high degree of debris.
enumeration	A37 - High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
enumeration	A38 - Deep Flood: A flood where the floodwaters are of significant depth.
enumeration	A39 - Other characteristics, or no special characteristics.
enumeration	A40 - No data available on characteristics of flooding
enumeration	A41 - Characteristics of flooding uncertain

annotation

documentation

Conditional. Define the relevant characteristics of flooding (one or more options can be selected).

- A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
- A32=Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
- A33=Other rapid onset: A flood which develops quickly, other than a flash flood .
- A34=Medium onset flood: An onset of flooding, that occurs at a slower rate than a flash flood.
- A35=Slow onset flood: A flood which takes a longer time to develop.
- A36=Debris Flow: A flood conveying a high degree of debris.
- A37=High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
- A38=Deep Flood: A flood where the floodwaters are of significant depth.
- A39=Other characteristics, or no special characteristics.
- A40=No data available on characteristics of flooding

- A41=Characteristics of flooding uncertain.

source

<xs:element name="characteristicsOfFlooding" type="fd:CharacteristicsofFlooding_Enum" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Conditional. Define the relevant characteristics of flooding (one or more options can be selected).

- A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
- A32=Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
- A33=Other rapid onset: A flood which develops quickly, other than a flash flood .
- A34=Medium onset flood: An onset of flooding, that occurs at a slower rate than a flash flood.
- A35=Slow onset flood: A flood which takes a longer time to develop.
- A36=Debris Flow: A flood conveying a high degree of debris.
- A37=High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
- A38=Deep Flood: A flood where the floodwaters are of significant depth.
- A39=Other characteristics, or no special characteristics.
- A40=No data available on characteristics of flooding

- A41=Characteristics of flooding uncertain.</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFlood/otherCharacteristicsDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘A39=Other’ selected from enumeration list provide a description of the other characteristics or state whether there are no special characteristics

source

<xs:element name="otherCharacteristicsDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘A39=Other’ selected from enumeration list provide a description of the other characteristics or state whether there are no special characteristics</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFlood/characteristicsUncertainDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘A41=Characteristics of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty

source

<xs:element name="characteristicsUncertainDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If ‘A41=Characteristics of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFlood/reference

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

ReferenceType

properties

isRef	0
minOcc	0
maxOcc	1
content	complex

children

Hyperlink FileName Bookmark DocumentName Subject

source

<xs:element name="reference" type="fd:ReferenceType" minOccurs="0"/>

complexType TypeofFloodUoM

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

sourceOfFlooding otherSourceDescription sourceUncertainDescription

used by

element

PFRAInformation/TypeofFloodUoM

source

<xs:complexType name="TypeofFloodUoM">
<xs:sequence>
    <xs:element name="sourceOfFlooding" type="fd:SourceofFlooding_Enum" maxOccurs="unbounded">
      <xs:annotation>
        <xs:documentation>Required. Provide information on the specific flood types to which Article 4 applies (one or more options can be selected).

- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.

- A17=No data available on the source of flooding

- A18=Source of flooding uncertain</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="otherSourceDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If 'A16=Other: Flooding of land by water due to other sources, can include other tsunamis' selected from enumeration list provide a description of the other source(s)</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sourceUncertainDescription" type="fd:String1000Type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Conditional. If ‘A18=Source of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty</xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element TypeofFloodUoM/sourceOfFlooding

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

SourceofFlooding_Enum

properties

isRef	0
minOcc	1
maxOcc	unbounded
content	simple

facets

Kind	Value	annotation
enumeration	A11 - Fluvial
enumeration	A12 - Pluvial
enumeration	A13 - Groundwater
enumeration	A14 - Sea Water
enumeration	A15 - Artificial Water-Bearing Infrastructure
enumeration	A16 - Other: Flooding of land by water due to other sources, can include other tsunamis.
enumeration	A17 - No data available on the source of flooding
enumeration	A18 - Source of flooding uncertain

annotation

documentation

Required. Provide information on the specific flood types to which Article 4 applies (one or more options can be selected).

- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.

- A17=No data available on the source of flooding

- A18=Source of flooding uncertain

source

<xs:element name="sourceOfFlooding" type="fd:SourceofFlooding_Enum" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation>Required. Provide information on the specific flood types to which Article 4 applies (one or more options can be selected).

- A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.
- A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.
- A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.
- A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.
- A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).
- A16=Other: Flooding of land by water due to other sources, can include other tsunamis.

- A17=No data available on the source of flooding

- A18=Source of flooding uncertain</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloodUoM/otherSourceDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If 'A16=Other: Flooding of land by water due to other sources, can include other tsunamis' selected from enumeration list provide a description of the other source(s)

source

<xs:element name="otherSourceDescription" type="fd:String1000Type" minOccurs="0">
<xs:annotation>
<xs:documentation>Conditional. If 'A16=Other: Flooding of land by water due to other sources, can include other tsunamis' selected from enumeration list provide a description of the other source(s)</xs:documentation>
</xs:annotation>
</xs:element>

element TypeofFloodUoM/sourceUncertainDescription

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

String1000Type

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

Conditional. If ‘A18=Source of flooding uncertain’ selected from enumeration list provide a reason for the uncertainty

source

complexType TypeofPotentialConsequences

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

CulturalHeritageDetail EnvironmentDetail HumanHealthSocialDetail EconomicActivityDetail

used by

element

FloodLocation/TypeofPotentialConsequences

source

<xs:complexType name="TypeofPotentialConsequences">
<xs:sequence>
    <xs:element name="CulturalHeritageDetail" type="CulturalHeritageDetail"/>
    <xs:element name="EnvironmentDetail" type="EnvironmentDetail"/>
    <xs:element name="HumanHealthSocialDetail" type="HumanHealthSocialDetail"/>
    <xs:element name="EconomicActivityDetail" type="EconomicActivityDetail"/>
</xs:sequence>
</xs:complexType>

element TypeofPotentialConsequences/CulturalHeritageDetail

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

CulturalHeritageDetail

properties

isRef	0
content	complex

children

degree_TotalDamage degree_TotalDamageClass degree_TotalDamageGDP typeCulturalHeritage otherConsequenceDescription otherDamageDescription

source

<xs:element name="CulturalHeritageDetail" type="CulturalHeritageDetail"/>

element TypeofPotentialConsequences/EnvironmentDetail

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

EnvironmentDetail

properties

isRef	0
content	complex

children

degree_TotalDamage degree_TotalDamageClass degree_TotalDamageGDP typeEnvironment otherConsequenceDescription otherDamageDescription

source

<xs:element name="EnvironmentDetail" type="EnvironmentDetail"/>

element TypeofPotentialConsequences/HumanHealthSocialDetail

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

HumanHealthSocialDetail

properties

isRef	0
content	complex

children

degree_TotalDamage degree_TotalDamageClass degree_TotalDamageGDP fatalities typeHumanHealth otherConsequenceDescription otherDamageDescription

source

<xs:element name="HumanHealthSocialDetail" type="HumanHealthSocialDetail"/>

element TypeofPotentialConsequences/EconomicActivityDetail

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

EconomicActivityDetail

properties

isRef	0
content	complex

children

degree_TotalDamage degree_TotalDamageClass degree_TotalDamageGDP typeEconomicActivity otherConsequenceDescription otherDamageDescription

source

<xs:element name="EconomicActivityDetail" type="EconomicActivityDetail"/>

complexType TypeofPotentialConsequencesMethodology

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

children

Environment EconomicActivity CulturalHeritage HumanHealthSocial

used by

element

PFRAInformation/TypeofPotentialConsequencesMethodology

source

<xs:complexType name="TypeofPotentialConsequencesMethodology">
<xs:sequence>
    <xs:element name="Environment" type="Environment"/>
    <xs:element name="EconomicActivity" type="EconomicActivity"/>
    <xs:element name="CulturalHeritage" type="CulturalHeritage"/>
    <xs:element name="HumanHealthSocial" type="HumanHealthSocial"/>
</xs:sequence>
</xs:complexType>

element TypeofPotentialConsequencesMethodology/Environment

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

Environment

properties

isRef	0
content	complex

children

reference

source

<xs:element name="Environment" type="Environment"/>

element TypeofPotentialConsequencesMethodology/EconomicActivity

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

EconomicActivity

properties

isRef	0
content	complex

children

reference

source

<xs:element name="EconomicActivity" type="EconomicActivity"/>

element TypeofPotentialConsequencesMethodology/CulturalHeritage

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

CulturalHeritage

properties

isRef	0
content	complex

children

reference

source

<xs:element name="CulturalHeritage" type="CulturalHeritage"/>

element TypeofPotentialConsequencesMethodology/HumanHealthSocial

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec

type

HumanHealthSocial

properties

isRef	0
content	complex

children

reference

source

<xs:element name="HumanHealthSocial" type="HumanHealthSocial"/>

complexType ReferenceType

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

children

Hyperlink FileName Bookmark DocumentName Subject

used by

elements

OtherRelevantInformation/otherRelevantInformationReference HumanHealthSocial/reference Article4.2_d_Issues/reference OverallApproachReview_Article14.1/reference Article14.4ConsiderationOfClimateChange/reference Article4.2_d_PotentialAdverseConsequences/reference CulturalHeritage/reference Environment/reference Article4.3InternationalInformationExchange/reference TypeofFlood/reference FloodData/reference Article4.2_c_SignificantAdverseConsequences/reference Article4.2_a_Maps/reference EconomicActivity/reference Article4.2_b_PastAdverseConsequences/reference FloodLocation/reference

annotation

documentation

ReferenceType: Reference Structure
All the references to Methodology

source

<xs:complexType name="ReferenceType">
<xs:annotation>
    <xs:documentation>ReferenceType: Reference Structure
All the references to Methodology</xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:choice>
      <xs:element name="Hyperlink" type="URLType"/>
      <xs:element name="FileName" type="String50Type"/>
    </xs:choice>
    <xs:element name="Bookmark" type="String50Type"/>
    <xs:element name="DocumentName" type="String250Type"/>
    <xs:element name="Subject" type="String250Type"/>
</xs:sequence>
</xs:complexType>

element ReferenceType/Hyperlink

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

URLType

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250
pattern	https?://.*

source

<xs:element name="Hyperlink" type="URLType"/>

element ReferenceType/FileName

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

String50Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

source

<xs:element name="FileName" type="String50Type"/>

element ReferenceType/Bookmark

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

String50Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	50

source

<xs:element name="Bookmark" type="String50Type"/>

element ReferenceType/DocumentName

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

String250Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

source

<xs:element name="DocumentName" type="String250Type"/>

element ReferenceType/Subject

diagram

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

String250Type

properties

isRef	0
content	simple

facets

Kind	Value	annotation
minLength	1
maxLength	250

source

<xs:element name="Subject" type="String250Type"/>

simpleType AnnexAspectsIncluded_enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Conclusions drawn from the flood hazard and flood risk maps (Y/N)
enumeration	Conclusions of PFRA in the form of a summary map (Y/N)
enumeration	A description of the appropriate objectives of flood risk management (Y/N)
enumeration	A summary of the measures and their prioritisation to achieve the appropriate objectives (Y/N)
enumeration	For shared river basins a description of the cost-benefit analysis used to assess measures with transnational effects (Y/N)
enumeration	Description of the way in which progress in implementing the plan is monitored (Y/N)
enumeration	Summary of the public information and consultation (Y/N)
enumeration	A list of competent authorities (Y/N)
enumeration	A description of the coordination process within any IRBD (Y/N)
enumeration	A summary of reviews and updates of the plans (Y/N)
enumeration	An assessment of progress made towards achieving the objectives (Y/N)
enumeration	A description and explanation of any measures previously identified but not taken forward (Y/N)
enumeration	A description of additional measures since the publication of prior plans (Y/N)

annotation

documentation

- Conclusions of PFRA in the form of a summary map (Y/N)
- Conclusions drawn from the flood hazard and flood risk maps (Y/N)
- A description of the appropriate objectives of flood risk management (Y/N)
- A summary of the measures and their prioritisation to achieve the appropriate objectives (Y/N)
- For shared river basins a description of the cost-benefit analysis used to assess measures with transnational effects (Y/N)
- Description of the way in which progress in implementing the plan is monitored (Y/N)
- Summary of the public information and consultation (Y/N)
- A list of competent authorities (Y/N)
- A description of the coordination process within any IRBD (Y/N)
- A description of the coordination process with the WFD (Y/N)
- A summary of reviews and updates of the plans (Y/N)
- An assessment of progress made towards achieving the objectives (Y/N)
- A description and explanation of any measures previously identified but not taken forward (Y/N)
- A description of additional measures since the publication of prior plans (Y/N)

source

simpleType Article_6.6_Justification_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Other justification
enumeration	Prevention of damage and damge potential through legal regulations for use (e.g. for the embankment foreland)
enumeration	Risk of failure of existing defences assessed
enumeration	Risk of overtopping of existing flood defences assessed
enumeration	Article 6.6 not applied

source

<xs:simpleType name="Article_6.6_Justification_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Other justification"/>
    <xs:enumeration value="Prevention of damage and damge potential through legal regulations for use (e.g. for the embankment foreland)"/>
    <xs:enumeration value="Risk of failure of existing defences assessed"/>
    <xs:enumeration value="Risk of overtopping of existing flood defences assessed"/>
    <xs:enumeration value="Article 6.6 not applied"/>
</xs:restriction>
</xs:simpleType>

simpleType Article_6.7_Justification_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Groundwater is considered as a contributing source rather than a main source of flooding
enumeration	It is difficult to distinguish the impact of groundwater flooding from other sources of flooding
enumeration	Only low probability groundwater flooding is assessed to be a hazardous risk
enumeration	Other justification
enumeration	There is limited information or historical records on groundwater flooding
enumeration	Article 6.7 not applied

source

<xs:simpleType name="Article_6.7_Justification_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Groundwater is considered as a contributing source rather than a main source of flooding"/>
    <xs:enumeration value="It is difficult to distinguish the impact of groundwater flooding from other sources of flooding"/>
    <xs:enumeration value="Only low probability groundwater flooding is assessed to be a hazardous risk"/>
    <xs:enumeration value="Other justification"/>
    <xs:enumeration value="There is limited information or historical records on groundwater flooding"/>
    <xs:enumeration value="Article 6.7 not applied"/>
</xs:restriction>
</xs:simpleType>

simpleType AspectsIncluded_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Costs and benefits (of measures) (Y/N)Flood extent (Y/N)
enumeration	Flood conveyance routes (Y/N)
enumeration	Areas which have potential to retain flood water, such as natural floodplains (Y/N)
enumeration	The environmental objectives of Article 4 of the WFD (Y/N)
enumeration	Soil and water management (Y/N)
enumeration	Spatial planning (Y/N)
enumeration	Land use (Y/N)
enumeration	Nature conservation (Y/N)
enumeration	Navigation and port infrastructure (Y/N)
enumeration	Promotion of sustainable land use practices (Y/N)
enumeration	Improvement of water retention (Y/N)
enumeration	Controlled flooding of certain areas in case of a flood event (Y/N)
enumeration	The use of flood forecasting and early warning systems (Y/N)

annotation

documentation

- Costs and benefits (of measures) (Y/N)Flood extent (Y/N)
- Flood conveyance routes (Y/N)
- Areas which have potential to retain flood water, such as natural floodplains (Y/N)
- The environmental objectives of Article 4 of the WFD (Y/N)
- Soil and water management (Y/N)
- Spatial planning (Y/N)
- Land use (Y/N)
- Nature conservation (Y/N)
- Navigation and port infrastructure (Y/N)
- Promotion of sustainable land use practices (Y/N)
- Improvement of water retention (Y/N)
- Controlled flooding of certain areas in case of a flood event (Y/N)

The use of flood forecasting and early warning systems (Y/N)

source

simpleType CategoryFloods_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

FloodData/categoryOfFlood

facets

Kind	Value	annotation
enumeration	Past flood
enumeration	Potential future floods

annotation

documentation

Can be past flood (past) or potential future flood (future)

source

<xs:simpleType name="CategoryFloods_Enum">
<xs:annotation>
    <xs:documentation>Can be past flood (past) or potential future flood (future)</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Past flood"/>
    <xs:enumeration value="Potential future floods"/>
</xs:restriction>
</xs:simpleType>

simpleType CharacteristicsofFlooding_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

TypeofFlood/characteristicsOfFlooding

facets

Kind	Value	annotation
enumeration	A31 - Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.
enumeration	A32 - Snow Melt Flood: Flooding due to rapid snow melt, possibly in combination with rainfall or blockage due to ice jams.
enumeration	A33 - Other rapid onset: A flood which develops quickly, other than a flash flood .
enumeration	A34 - Medium onset flood: An onset of flooding that occurs at a slower rate than a flash flood.
enumeration	A35 - Slow onset flood: A flood which takes a longer time to develop.
enumeration	A36 - Debris Flow: A flood conveying a high degree of debris.
enumeration	A37 - High Velocity Flow: A flood where the floodwaters are flowing at a high velocity.
enumeration	A38 - Deep Flood: A flood where the floodwaters are of significant depth.
enumeration	A39 - Other characteristics, or no special characteristics.
enumeration	A40 - No data available on characteristics of flooding
enumeration	A41 - Characteristics of flooding uncertain

annotation

documentation

Define relevant characteristics of flooding. The list are in line with table A3 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A31=Flash Flood: A flood that rises and falls quite rapidly with little or no advance warning, usually the result of intense rainfall over a relatively small area.

A36=Debris Flow: A flood conveying a high degree of debris.

A39=Other characteristics, or no special characteristics.

A40=No data available on characteristics of flooding,

A41=Characteristics of flooding uncertain.

source

simpleType ClimateChange_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	No
enumeration	Yes
enumeration	Yes but not all sources
enumeration	Yes but not for all maps

source

<xs:simpleType name="ClimateChange_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="No"/>
    <xs:enumeration value="Yes"/>
    <xs:enumeration value="Yes but not all sources"/>
    <xs:enumeration value="Yes but not for all maps"/>
</xs:restriction>
</xs:simpleType>

simpleType ConsultationStakeholdersInvolved_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Civil Protection Authorities
enumeration	Flood Warning/ Defence Authorities
enumeration	Drainage Authorities
enumeration	Emergency services
enumeration	Water supply and sanitation
enumeration	Community groups
enumeration	Agriculture/farmers
enumeration	Energy/hydropower
enumeration	Navigation/ports
enumeration	Fisheries/aquaculture
enumeration	Industry
enumeration	NGO's /nature protection
enumeration	Consumer Groups
enumeration	Local/Regional authorities
enumeration	Academia/Research Institutions
enumeration	Other

annotation

documentation

Table summarising across MS, the groups of stakeholders who have been actively involved in the development of the FRMPs

source

simpleType ConsultationStakeholdersInvolvedMechanisms_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Establishment of advisory or working groups
enumeration	Provision of information at relevant public exhibitions or providing notices on public sites
enumeration	Stakeholder involvement in drafting
enumeration	Formation of alliances
enumeration	Other outreach activities with opportunities for discussion and dialogue
enumeration	Other

annotation

documentation

Table summarising across MS, the mechanisms used to encourage the active involvement of stakeholders in the development of the FRMPs

source

<xs:simpleType name="ConsultationStakeholdersInvolvedMechanisms_Enum">
<xs:annotation>
    <xs:documentation>Table summarising across MS, the mechanisms used to encourage the active involvement of stakeholders in the development of the FRMPs</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Establishment of advisory or working groups"/>
    <xs:enumeration value="Provision of information at relevant public exhibitions or providing notices on public sites"/>
    <xs:enumeration value="Stakeholder involvement in drafting"/>
    <xs:enumeration value="Formation of alliances"/>
    <xs:enumeration value="Other outreach activities with opportunities for discussion and dialogue"/>
    <xs:enumeration value="Other"/>
</xs:restriction>
</xs:simpleType>

simpleType CoordinateType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
pattern	\-{0,1}[0-9]{1,2}\.[0-9]{1,5}

annotation

documentation

Format Decimal degrees (-)dd.ddddd

source

<xs:simpleType name="CoordinateType">
<xs:annotation>
<xs:documentation>Format Decimal degrees (-)dd.ddddd</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
<xs:pattern value="\-{0,1}[0-9]{1,2}\.[0-9]{1,5}"/>
</xs:restriction>
</xs:simpleType>

simpleType CoordinationFRMPandRBMP_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Integration of FRMP and RBMP into a single document
enumeration	Joint consultation of draft FRMP and RBMP
enumeration	Coordination between authorities responsible for developing FRMP and RBMP
enumeration	The objectives of the FD have been considered in the WFD RBMPs and PoMs
enumeration	Coordination with the environmental objectives in Art.4 of the WFD
enumeration	Planning of win-win and no regret measures in FRMP and RBMP have included drought management measures
enumeration	Planning of win-win and no regret measures in FRMP and RBMP have included Natural water retention and green infrastructure measures
enumeration	Permitting or consenting of flood risk activities (e.g. dredging, flood defence management) requires prior consideration of WFD objectives and RBMPs
enumeration	Consistent and compliant application of Article 7 and designation of HMWBs with measures taken under the FD e.g. flood defence infrastructure
enumeration	The design of new and existing structural measures such as flood defences, storage dams and tidal barriers have been adapted to take into account WFD Environmental Objectives
enumeration	The use of sustainable drainage systems, such as the construction of wetlands and porous pavements, have been considered to reduce urban flooding and also to contribute to the achievement of WFD objectives
enumeration	Other

source

simpleType CountryCode_enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

Kind	Value	annotation
enumeration	AT
enumeration	BE
enumeration	BG
enumeration	CH
enumeration	CZ
enumeration	CY
enumeration	DE
enumeration	DK
enumeration	EE
enumeration	EL
enumeration	ES
enumeration	FI
enumeration	FR
enumeration	HR
enumeration	HU
enumeration	IE
enumeration	IS
enumeration	IT
enumeration	LT
enumeration	LU
enumeration	LV
enumeration	MT
enumeration	NO
enumeration	NL
enumeration	PL
enumeration	PT
enumeration	RO
enumeration	SE
enumeration	SI
enumeration	SK
enumeration	TR
enumeration	UK

annotation

documentation

Unique 2 character ISO Code for the EU Member States

source

simpleType CriteriaForDeterminationFloodRisk_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Area of property affected
enumeration	Number of permanent residents affected by the flood extent
enumeration	Value or area of property affected (residential and non-residential)
enumeration	Number of buildings affected (residential and non-residential)
enumeration	Adverse consequences to infrastructural assets
enumeration	Damage exceeds specific threshold (area)
enumeration	Adverse consequences on water bodies
enumeration	Sources of pollution triggered from industrial installations
enumeration	Adverse consequences to rural land use
enumeration	Adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
enumeration	Potential adverse consequences to properties
enumeration	Adverse impacts on cultural assets and cultural landscapes
enumeration	Recurrence periods
enumeration	Recurrence periods in combination with land use
enumeration	Flood extent
enumeration	Flood duration
enumeration	Water level or depth
enumeration	Water velocity
enumeration	Whether floods have occurred in the past
enumeration	Specific weighting systems defined to assess significance
enumeration	Expert Judgement
enumeration	Number of past flood events
enumeration	Damage caused in past flood events
enumeration	Other

source

simpleType CriteriaForInclusion_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Flood defences not in place or not fully implemented
enumeration	Frequency
enumeration	Frequency or number of past events
enumeration	In agreement with neighboring countries
enumeration	Local knowledge and/or public opinion
enumeration	Magnitude of risk to cultural heritage
enumeration	Magnitude of risk to economic activity
enumeration	Magnitude of risk to human health
enumeration	Magnitude of risk to the environment
enumeration	number or Iimpact of past events
enumeration	Possible failure of flood defences
enumeration	Changes in land use have increased vulnerability of the area to flooding
enumeration	Exceeding thresholds under specific weighting systems defined to assess significance
enumeration	Expert judgement
enumeration	High level of damage expected
enumeration	Other
enumeration	Impact of past events

source

simpleType DataConfidentialityClassificationCode_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

attribute

PFRA/@classificationCode

facets

Kind	Value	annotation
enumeration	001 - Unclassified
enumeration	003 - Confidential

annotation

documentation

Codes for data security classification:
001 = Unclassified - available for general circulation and public
003 = Confidential - available for EC reporting only

source

<xs:simpleType name="DataConfidentialityClassificationCode_Enum">
<xs:annotation>
    <xs:documentation>Codes for data security classification:
001 = Unclassified - available for general circulation and public
003 = Confidential - available for EC reporting only
</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="001 - Unclassified"/>
    <xs:enumeration value="003 - Confidential"/>
</xs:restriction>
</xs:simpleType>

simpleType DateTypeYearType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (xs:date, xs:gYear, xs:gYearMonth, NumberExceptionType)

used by

element

FloodData/dateOfCommencement

annotation

documentation

Both date type yyyy-mm-dd, yyyy-mm and yyyy allowed and the exception types (-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable)

source

<xs:simpleType name="DateTypeYearType">
<xs:annotation>
<xs:documentation>Both date type yyyy-mm-dd, yyyy-mm and yyyy allowed and the exception types (-9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable)</xs:documentation>
</xs:annotation>
<xs:union memberTypes="xs:date xs:gYear xs:gYearMonth NumberExceptionType"/>
</xs:simpleType>

simpleType ElementsProbability6.6_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Article 6.6 applied
enumeration	Flooding Extent
enumeration	Other (e.g. conveyance routes)
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)
- Article 6.6 applied

source

<xs:simpleType name="ElementsProbability6.6_Enum">
<xs:annotation>
    <xs:documentation>
- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)
- Article 6.6 applied</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Article 6.6 applied"/>
    <xs:enumeration value="Flooding Extent"/>
    <xs:enumeration value="Other (e.g. conveyance routes)"/>
    <xs:enumeration value="Water depth/level"/>
    <xs:enumeration value="Water flow/velocity"/>
</xs:restriction>
</xs:simpleType>

simpleType ElementsProbability6.7_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Article 6.7 applied
enumeration	Flooding Extent
enumeration	Other (e.g. conveyance routes)
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)
- Article 6.7 applied

source

<xs:simpleType name="ElementsProbability6.7_Enum">
<xs:annotation>
    <xs:documentation>
- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)
- Article 6.7 applied</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Article 6.7 applied"/>
    <xs:enumeration value="Flooding Extent"/>
    <xs:enumeration value="Other (e.g. conveyance routes)"/>
    <xs:enumeration value="Water depth/level"/>
    <xs:enumeration value="Water flow/velocity"/>
</xs:restriction>
</xs:simpleType>

simpleType ElementsProbability_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Flooding Extent
enumeration	Other (e.g. conveyance routes)
enumeration	Water depth/level
enumeration	Water flow/velocity

annotation

documentation

- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)

source

<xs:simpleType name="ElementsProbability_Enum">
<xs:annotation>
    <xs:documentation>
- Flooding Extent
- Water depth/level
- Water flow/velocity
- Other (e.g. conveyance routes)</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Flooding Extent"/>
    <xs:enumeration value="Other (e.g. conveyance routes)"/>
    <xs:enumeration value="Water depth/level"/>
    <xs:enumeration value="Water flow/velocity"/>
</xs:restriction>
</xs:simpleType>

simpleType FeatureUniqueCodeType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements	FloodEventInformation/floodEventCode Sub-UoMAreasType/nameofSub-UoMArea Sub-UoMAreasType/sub-UoMCode
simpleType	FeatureUniqueCodeTypeEX

facets

Kind	Value	annotation
minLength	1
maxLength	40
whiteSpace	collapse

annotation

documentation

Type for unique code within the Member State for the feature

source

<xs:simpleType name="FeatureUniqueCodeType">
<xs:annotation>
    <xs:documentation>Type for unique code within the Member State for the feature</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="40"/>
    <xs:whiteSpace value="collapse"/>
</xs:restriction>
</xs:simpleType>

simpleType FeatureUniqueCodeTypeEX

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (FeatureUniqueCodeType, NumberExceptionType)

used by

element

FloodLocation/floodLocationCode

annotation

documentation

Type for unique code within the Member State for the feature with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.

source

<xs:simpleType name="FeatureUniqueCodeTypeEX">
<xs:annotation>
<xs:documentation>Type for unique code within the Member State for the feature with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.</xs:documentation>
</xs:annotation>
<xs:union memberTypes="FeatureUniqueCodeType NumberExceptionType"/>
</xs:simpleType>

simpleType FeatureUniqueEUCodeType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

FloodLocation/apsfrCode FloodLocation/crossBorderFloodLocationCode FloodLocation/euSurfaceWaterBodyCode PFRA/euUoMCode

facets

Kind	Value	annotation
minLength	3
maxLength	42

annotation

documentation

Type for EU code, allows up to 42 characters (unique code within MS prefixed with country ISO 2 character code

source

<xs:simpleType name="FeatureUniqueEUCodeType">
<xs:annotation>
    <xs:documentation>Type for EU code, allows up to 42 characters (unique code within MS prefixed with country ISO 2 character code</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="42"/>
</xs:restriction>
</xs:simpleType>

simpleType FloodSourcesMapped_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Map shows flood extents for a single source
enumeration	Map shows flood extent for multiple (i.e. combined) sources by overlapping individual flood sources
enumeration	Map shows flood extent for multiple sources resulting from combined modelling of flood sources (e.g. that occurred concurrently)

source

<xs:simpleType name="FloodSourcesMapped_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Map shows flood extents for a single source"/>
    <xs:enumeration value="Map shows flood extent for multiple (i.e. combined) sources by overlapping individual flood sources"/>
    <xs:enumeration value="Map shows flood extent for multiple sources resulting from combined modelling of flood sources (e.g. that occurred concurrently)"/>
</xs:restriction>
</xs:simpleType>

simpleType GeographicScale_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	A
enumeration	B

source

<xs:simpleType name="GeographicScale_Enum">
<xs:restriction base="xs:string">
<xs:enumeration value="A"/>
<xs:enumeration value="B"/>
</xs:restriction>
</xs:simpleType>

simpleType HistorialSignificantFloodsCriteria_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

Article4.2_c_SignificantAdverseConsequences/criteriaUsed Article4.2_b_PastAdverseConsequences/criteriaUsed

facets

Kind	Value	annotation
enumeration	Flooded area
enumeration	Number of residents in flooded area
enumeration	Number of buildings affected
enumeration	Affected area with commercial or industrial use
enumeration	Level of damage caused (e.g. high, medium, low)
enumeration	Required amount of money in compensation
enumeration	Return period
enumeration	Duration of occurrence
enumeration	Whether a specific flood warning level was triggered
enumeration	Specific weighting systems/benchmark defined to assess significance
enumeration	Expert Judgement
enumeration	Other

source

simpleType ImpactPublicParticipation_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Addition of new information
enumeration	Adjustment to specific measures
enumeration	Changes to selection of measures
enumeration	Changes to the methodology used
enumeration	Commitment to action in the next RBMP cycle
enumeration	Commitment to further research
enumeration	Other outcome

source

<xs:simpleType name="ImpactPublicParticipation_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Addition of new information"/>
    <xs:enumeration value="Adjustment to specific measures"/>
    <xs:enumeration value="Changes to selection of measures"/>
    <xs:enumeration value="Changes to the methodology used"/>
    <xs:enumeration value="Commitment to action in the next RBMP cycle"/>
    <xs:enumeration value="Commitment to further research"/>
    <xs:enumeration value="Other outcome"/>
</xs:restriction>
</xs:simpleType>

simpleType InternationalInformationExchange_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

Article4.3InternationalInformationExchange/informationExchange

facets

Kind	Value	annotation
enumeration	International River Commission
enumeration	Bilateral border water commissions
enumeration	International coordination and working groups
enumeration	Bilateral coordination and working groups
enumeration	Regulations in place to enable exchange of information at international level
enumeration	Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration	Informal arrangements (groups discussions and exchange of information)
enumeration	Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration	No information exchange
enumeration	Other

source

simpleType IssuesArticle4.2_d_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

Article4.2_d_Issues/issues

facets

Kind	Value	annotation
enumeration	Topography
enumeration	Position of watercourses and their general hydrological and geomorphological characteristics
enumeration	Floodplains as natural retention areas
enumeration	The effectiveness of existing man-made flood defence infrastructures
enumeration	The position of populated areas
enumeration	Areas of economic activity
enumeration	Impacts of climate change on the occurrence of floods
enumeration	Long-term developments; development of settlements (private, public and commercial)
enumeration	Long-term developments; development of infrastructure (transport, water, energy and telecoms)
enumeration	Long-term developments; rural land-use change
enumeration	The specific needs of the of the MS do not require an assessment under Article 4.2(d)

source

simpleType LanguageCode_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

Kind	Value	annotation
enumeration	bg
enumeration	es
enumeration	cs
enumeration	da
enumeration	de
enumeration	et
enumeration	el
enumeration	en
enumeration	fr
enumeration	ga
enumeration	hr
enumeration	ic
enumeration	it
enumeration	lv
enumeration	lt
enumeration	hu
enumeration	mt
enumeration	nl
enumeration	no
enumeration	pl
enumeration	pt
enumeration	ro
enumeration	sk
enumeration	sl
enumeration	sr
enumeration	tr
enumeration	fi
enumeration	sv

annotation

documentation

Unique 2 character ISO Code for the EU Member States language (the codes used are the ISO codes 639-1 in force, alpha-2 code)

bg=Bulgarian
es=Spanish
cs=Czech
da=Danish
de=German
et=Estonian
el=Greek
en=English
fr=French
ga=Irish
hr=Croatian
ic=Icelandic
it=Italian
lv=Latvian
lt=Lithuanian
hu=Hungarian
mt=Maltese
nl=Dutch
no=Norwegian
pl=Polish
pt=Portuguese
ro=Romanian
sk=Slovak
sl=Slovenian
sr=Serbian
tr=Tyrkish
fi=Finnish
sv=Swedish

source

simpleType LocalNationalInternationalCoordination_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries
enumeration	Coordination of FRMPs has taken place at the UoM/RBD level within the Member State
enumeration	There was a need to refer to the solidarity principle
enumeration	UoM/RBD not international
enumeration	No Coordination has taken place

annotation

documentation

Table showing whether coordination at the appropriate level has taken place across MS

source

<xs:simpleType name="LocalNationalInternationalCoordination_Enum">
<xs:annotation>
    <xs:documentation>Table showing whether coordination at the appropriate level has taken place across MS</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="Coordination of FRMPs has taken place at the international UoM/RBD level between Member States/neighbouring countries"/>
    <xs:enumeration value="Coordination of FRMPs has taken place at the UoM/RBD level within the Member State"/>
    <xs:enumeration value="There was a need to refer to the solidarity principle"/>
    <xs:enumeration value="UoM/RBD not international"/>
    <xs:enumeration value="No Coordination has taken place"/>
</xs:restriction>
</xs:simpleType>

simpleType MeasureAspect_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Aggregated
enumeration	Individual

source

<xs:simpleType name="MeasureAspect_Enum">
<xs:restriction base="xs:string">
<xs:enumeration value="Aggregated"/>
<xs:enumeration value="Individual"/>
</xs:restriction>
</xs:simpleType>

simpleType MeasureCodesProgress_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Not started
enumeration	In preparation (e.g. planning)
enumeration	On-going (one-off e.g. construction works)
enumeration	Completed

source

<xs:simpleType name="MeasureCodesProgress_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Not started"/>
    <xs:enumeration value="In preparation (e.g. planning)"/>
    <xs:enumeration value="On-going (one-off e.g. construction works)"/>
    <xs:enumeration value="Completed"/>
</xs:restriction>
</xs:simpleType>

simpleType MeasureType_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	M11
enumeration	M21
enumeration	M22
enumeration	M23
enumeration	M24
enumeration	M31
enumeration	M32
enumeration	M33
enumeration	M34
enumeration	M35
enumeration	M41
enumeration	M42
enumeration	M43
enumeration	M44
enumeration	M51
enumeration	M52
enumeration	M53
enumeration	M61

annotation

documentation

M11=No Action, No measure is proposed to reduce the flood risk in the APSFR or other defined area ,
M21=Prevention, Avoidance, Measure to prevent the location of new or additional receptors in flood prone areas, such as land use planning policies or regulation
M22=Prevention, Removal or relocation, Measure to remove receptors from flood prone areas, or to relocate receptors to areas of lower probability of flooding and/or of lower hazard
M23=Prevention, Reduction, Measure to adapt receptors to reduce the adverse consequences in the event of a flood actions on buildings, public networks, etc...
M24=Prevention, Other prevention, Other measure to enhance flood risk prevention (may include, flood risk modelling and assessment, flood vulnerability assessment, maintenance programmes or policies etc...)
M31=Protection Natural flood management / runoff and catchment management, Measures to reduce the flow into natural or artificial drainage systems, such as overland flow interceptors and / or storage, enhancement of infiltration, etc and including in-channel , floodplain works and the reforestation of banks, that restore natural systems to help slow flow and store water.
M32=Protection, Water flow regulation, Measures involving physical interventions to regulate flows, such as the construction, modification or removal of water retaining structures (e.g., dams or other on-line storage areas or development of existing flow regulation rules), and which have a significant impact on the hydrological regime.
M33=Protection, Channel, Coastal and Floodplain Works, Measures involving physical interventions in freshwater channels, mountain streams, estuaries, coastal waters and flood-prone areas of land, such as the construction, modification or removal of structures or the alteration of channels, sediment dynamics management, dykes, etc.
M34=Protection, Surface Water Management, Measures involving physical interventions to reduce surface water flooding, typically, but not exclusively, in an urban environment, such as enhancing artificial drainage capacities or though sustainable drainage systems (SuDS).
M35=Protection, Other Protection, Other measure to enhance protection against flooding, which may include flood defence asset maintenance programmes or policies
M41=Preparedness, Flood Forecasting and Warning, Measure to establish or enhance a flood forecasting or warning system
M42=Preparedness, Emergency Event Response Planning / Contingency planning, Measure to establish or enhance flood event institutional emergency response planning
M43=Preparedness, Public Awareness and Preparedness, Measure to establish or enhance the public awareness or preparedness for flood events
M44=Preparedness, Other preparedness, Other measure to establish or enhance preparedness for flood events to reduce adverse consequences
M51=Recovery and Review (Planning for the recovery and review phase is in principle part of preparedness), Individual and societal recovery, Clean-up and restoration activities (buildings, infrastructure, etc)
Health and mental health supporting actions, incl. managing stress
Disaster financial assistance (grants, tax), incl. disaster legal assistance, disaster unemployment assistance
Temporary or permanent relocation
Other
M52=Recovery and Review, Environmental recovery, Clean-up and restoration activities (with several sub-topics as mould protection, well-water safety and securing hazardous materials containers)
M53=Recovery and Review, Other, Other recovery and review Lessons learnt from flood events
Insurance policies
M61=Other

source

simpleType MechanismofFlooding_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

TypeofFlood/mechanismOfFlooding

facets

Kind	Value	annotation
enumeration	A21 - Natural Exceedance
enumeration	A22 - Defence Exceedance
enumeration	A23 - Defence or Infrastructural Failure
enumeration	A24 - Blockage / Restriction
enumeration	A25 - Other
enumeration	A26 - No data available on the mechanism of flooding
enumeration	A27 - Mechanism of flooding uncertain

annotation

documentation

Define relevant mechanism of flooding. The list are in line with table A2 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.

A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.

A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.

A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.

A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.

A26= No data available on the mechanism of flooding
A27=Mechanism of flooding uncertain

source

<xs:simpleType name="MechanismofFlooding_Enum">
<xs:annotation>
    <xs:documentation>Define relevant mechanism of flooding. The list are in line with table A2 from list of flood types from February 2011 (version 6).
One or more options can be selected.

A21=Natural Exceedance: Flooding of land by waters exceeding the capacity of their carrying channel or the level of adjacent lands.

A22=Defence Exceedance: Flooding of land due to floodwaters overtopping flood defences.

A23=Defence or Infrastructural Failure:Flooding of land due to the failure of natural or artificial defences or infrastructure. This mechanism of flooding could include the breaching or collapse of a flood defence or retention structure, or the failure in operation of pumping equipment or gates.

A24=Blockage / Restriction: Flooding of land due to a natural or artificial blockage or restriction of a conveyance channel or system. This mechanism of flooding could include the blockage of sewerage systems or due to restrictive channel structures such as bridges or culverts or arising from ice jams or land slides.

A25=Other: Flooding of land by water due to other mechanisms, for instance windsetup floods.

A26= No data available on the mechanism of flooding
A27=Mechanism of flooding uncertain</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="A21 - Natural Exceedance"/>
    <xs:enumeration value="A22 - Defence Exceedance"/>
    <xs:enumeration value="A23 - Defence or Infrastructural Failure"/>
    <xs:enumeration value="A24 - Blockage / Restriction"/>
    <xs:enumeration value="A25 - Other"/>
    <xs:enumeration value="A26 - No data available on the mechanism of flooding"/>
    <xs:enumeration value="A27 - Mechanism of flooding uncertain"/>
</xs:restriction>
</xs:simpleType>

simpleType MechanismsOfInternationalCoordination_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Bilateral border water commissions
enumeration	Informal arrangements (groups discussions and exchange of information)
enumeration	International coordination and working groups
enumeration	International River Commission
enumeration	Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration	Regulations in place to enable exchange of information at international level
enumeration	Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration	Other

source

simpleType NumberDecimalBaseType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:decimal

Kind	Value	annotation
minInclusive	0

source

<xs:simpleType name="NumberDecimalBaseType">
<xs:restriction base="xs:decimal">
<xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>

simpleType NumberDecimalType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (NumberDecimalBaseType, NumberExceptionType)

used by

elements

FloodData/area FloodData/durationOfFlood FloodData/length

annotation

documentation

Decimal with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.

source

<xs:simpleType name="NumberDecimalType">
<xs:annotation>
<xs:documentation>Decimal with options for exceptions. -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable.</xs:documentation>
</xs:annotation>
<xs:union memberTypes="NumberDecimalBaseType NumberExceptionType"/>
</xs:simpleType>

simpleType NumberExceptionType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

simpleTypes

DateTypeYearType FeatureUniqueCodeTypeEX NumberDecimalType NumberNonNegativeIntegerType NumberPercentageType

facets

Kind	Value	annotation
minLength	3
maxLength	42

annotation

documentation

Numerical codes for data exceptions: -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable

source

<xs:simpleType name="NumberExceptionType">
<xs:annotation>
    <xs:documentation>Numerical codes for data exceptions: -9999=Unknown, -8888=Yet to be measured, -7777=Not Applicable</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="3"/>
    <xs:maxLength value="42"/>
</xs:restriction>
</xs:simpleType>

simpleType NumberNonNegativeIntegerType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (xs:nonNegativeInteger, NumberExceptionType)

used by

element

HumanHealthSocialDetail/fatalities

annotation

documentation

Non-negative integer with option for exceptions

source

<xs:simpleType name="NumberNonNegativeIntegerType">
<xs:annotation>
<xs:documentation>Non-negative integer with option for exceptions</xs:documentation>
</xs:annotation>
<xs:union memberTypes="xs:nonNegativeInteger NumberExceptionType"/>
</xs:simpleType>

simpleType NumberPercentageBaseType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:decimal

Kind	Value	annotation
minInclusive	0
maxInclusive	100
fractionDigits	3

annotation

documentation

Percentage with 3 decimal places

source

<xs:simpleType name="NumberPercentageBaseType">
<xs:annotation>
    <xs:documentation>Percentage with 3 decimal places</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:decimal">
    <xs:fractionDigits value="3"/>
    <xs:maxInclusive value="100"/>
    <xs:minInclusive value="0"/>
</xs:restriction>
</xs:simpleType>

simpleType NumberPercentageType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (NumberPercentageBaseType, NumberExceptionType)

annotation

documentation

Percentage with option for exceptions

source

<xs:simpleType name="NumberPercentageType">
<xs:annotation>
<xs:documentation>Percentage with option for exceptions</xs:documentation>
</xs:annotation>
<xs:union memberTypes="NumberPercentageBaseType NumberExceptionType"/>
</xs:simpleType>

simpleType PotentialAdverseConsequencesCriteria_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

Article4.2_d_PotentialAdverseConsequences/criteriaUsed

facets

Kind	Value	annotation
enumeration	Potential number of permanent residents affected by the flood extent in flood plains
enumeration	Potential value/area of property affected (residential and non-residential)
enumeration	Potential number of buildings affected (residential and non-residential)
enumeration	Potential adverse consequences to infrastructural assets
enumeration	Damage potential exceeds specific threshold (area)
enumeration	Potential adverse consequences on water bodies
enumeration	Potential sources of pollution triggered from industrial installations
enumeration	Potential adverse consequences to rural land use
enumeration	Potential adverse consequences to economic activity (e.g. manufacturing, service and construction industries)
enumeration	Potential adverse impacts on cultural assets and cultural landscapes
enumeration	Recurrence periods
enumeration	Recurrence periods in combination with land use
enumeration	Water level or depth
enumeration	Water velocity
enumeration	Whether floods have occurred in the past
enumeration	Specific weighting systems defined to assess significance
enumeration	Expert Judgement
enumeration	Other
enumeration	The specific needs of the of the MS do not require an assessment under Article 4.2(d)

source

simpleType PriorInformationExchange_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	International River Commission
enumeration	Bilateral border water commissions
enumeration	International coordination and working groups
enumeration	Bilateral coordination and working groups
enumeration	Regulations in place to enable exchange of information at international level
enumeration	Use of pre-existing structures to ensure bilateral coordination (in place before FD implementation)
enumeration	Informal arrangements (groups discussions and exchange of information)
enumeration	Joint declaration with a neighbouring country (including non-EU MS) on cooperation on joint action
enumeration	Other

source

simpleType PriorityCategories_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Very high
enumeration	High
enumeration	Critical
enumeration	Moderate
enumeration	Low

source

<xs:simpleType name="PriorityCategories_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Very high"/>
    <xs:enumeration value="High"/>
    <xs:enumeration value="Critical"/>
    <xs:enumeration value="Moderate"/>
    <xs:enumeration value="Low"/>
</xs:restriction>
</xs:simpleType>

simpleType ProtectedAreaType_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Bathing
enumeration	Birds
enumeration	Habitats
enumeration	Nitrates
enumeration	UWWT
enumeration	Article 7 Abstraction for drinking water
enumeration	WFD_WaterBodies
enumeration	EuropeanOther
enumeration	National
enumeration	Local

annotation

documentation

Defines all Protected Area types for use in the Register of Protected Areas (Article 6)

source

simpleType PublicConsultationsMechanisms_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Media (papers, TV, radio)
enumeration	Internet
enumeration	Social networking sites
enumeration	Printed material
enumeration	Direct mailing
enumeration	Invitations to stakeholders
enumeration	Local Authorities
enumeration	Meetings with local population
enumeration	Written consultation
enumeration	Other

annotation

documentation

Table summarising the key mechanisms used for consultation across MS

source

simpleType RelevantSources_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Fluvial
enumeration	Pluvial
enumeration	Groundwater
enumeration	Seawater
enumeration	Artificial Water Bearing Infrastructure
enumeration	Other Source

source

<xs:simpleType name="RelevantSources_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Fluvial"/>
    <xs:enumeration value="Pluvial"/>
    <xs:enumeration value="Groundwater"/>
    <xs:enumeration value="Seawater"/>
    <xs:enumeration value="Artificial Water Bearing Infrastructure"/>
    <xs:enumeration value="Other Source"/>
</xs:restriction>
</xs:simpleType>

simpleType ReturnperiodandprobabilitiesApproach_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	(Statistical analysis on) historical countsdata
enumeration	(Statistical analysis on) hydraulic modelling
enumeration	(Statistical analysis on) hydrological modelling
enumeration	(Statistical analysis on) observed/ gauging data
enumeration	(Statistical analysis on) rainfall data
enumeration	Expert judgement
enumeration	Other (e.g. uncertain)

annotation

documentation

If ‘no information’ is selected justification must be provided

source

<xs:simpleType name="ReturnperiodandprobabilitiesApproach_Enum">
<xs:annotation>
    <xs:documentation>If ‘no information’ is selected justification must be provided</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="(Statistical analysis on) historical countsdata"/>
    <xs:enumeration value="(Statistical analysis on) hydraulic modelling"/>
    <xs:enumeration value="(Statistical analysis on) hydrological modelling"/>
    <xs:enumeration value="(Statistical analysis on) observed/ gauging data"/>
    <xs:enumeration value="(Statistical analysis on) rainfall data"/>
    <xs:enumeration value="Expert judgement"/>
    <xs:enumeration value="Other (e.g. uncertain)"/>
</xs:restriction>
</xs:simpleType>

simpleType RoleCode_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

Other responsibilities to be defined.

enumeration

Preparation and Production and implementation of the different stages of the Floods Directive

enumeration

Reporting: Public information and consultation; Reporting to Commission and

enumeration

Other - Any other roles not covered above.

documentation

Other - Any other roles not covered above.

source

<xs:simpleType name="RoleCode_Enum">
<xs:restriction base="xs:string">
    <xs:enumeration value="Coordination"/>
    <xs:enumeration value="Other responsibilities to be defined."/>
    <xs:enumeration value="Preparation and Production and implementation of the different stages of the Floods Directive"/>
    <xs:enumeration value="Reporting: Public information and consultation; Reporting to Commission and"/>
    <xs:enumeration value="Other - Any other roles not covered above.">
      <xs:annotation>
        <xs:documentation>Other - Any other roles not covered above.</xs:documentation>
      </xs:annotation>
    </xs:enumeration>
</xs:restriction>
</xs:simpleType>

simpleType SourceofFlooding_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

TypeofFlood/sourceOfFlooding TypeofFloodUoM/sourceOfFlooding

facets

Kind	Value	annotation
enumeration	A11 - Fluvial
enumeration	A12 - Pluvial
enumeration	A13 - Groundwater
enumeration	A14 - Sea Water
enumeration	A15 - Artificial Water-Bearing Infrastructure
enumeration	A16 - Other: Flooding of land by water due to other sources, can include other tsunamis.
enumeration	A17 - No data available on the source of flooding
enumeration	A18 - Source of flooding uncertain

annotation

documentation

Define relevant source of flooding. The list are in line with table A1 from list of flood types from February 2011 (version 6).

One or more options can be selected.

A11=Fluvial: Flooding of land by waters originating from part of a natural drainage system, including natural or modified drainage channels. This source could include flooding from rivers, streams, drainage channels, mountain torrents and ephemeral watercourses, lakes and floods arising from snow melt.

A12=Pluvial: Flooding of land directly from rainfall water falling on, or flowing over, the land. This source could include urban storm water, rural overland flow or excess water, or overland floods arising from snowmelt.

A13=Groundwater: Flooding of land by waters from underground rising to above the land surface. This source could include rising groundwater and underground flow from elevated surface waters.

A14=Sea Water: Flooding of land by water from the sea, estuaries or coastal lakes. This source could include flooding from the sea (e.g., extreme tidal level and / or storm surges) or arising from wave action or coastal tsunamis.

A15=Artificial Water-Bearing Infrastructure: Flooding of land by water arising from artificial, water-bearing infrastructure or failure of such infrastructure. This source could include flooding arising from sewerage systems (including storm water, combined and foul sewers), water supply and wastewater treatment systems, artificial navigation canals and impoundments (e.g., dams and reservoirs).

A16=Other: Flooding of land by water due to other sources, can include other tsunamis.

- A17=No data available on the source of flooding
- A18=Source of flooding uncertain

source

simpleType String1000Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

TypeofFlood/characteristicsUncertainDescription Article14.4ConsiderationOfClimateChange/climateChangeNotConsideredExplanation Article4.2_d_PotentialAdverseConsequences/criteriaOther Article4.2_b_PastAdverseConsequences/criteriaOther Article4.2_c_SignificantAdverseConsequences/criteriaOther CrossBorder/crossBorderRelationshipDescription Article4.2_a_Maps/description Article4.3InternationalInformationExchange/exchangeMechanismsNotConsidered Article4.2_d_PotentialAdverseConsequences/expertJudgementDescription Article4.2_b_PastAdverseConsequences/expertJudgementDescription Article4.2_c_SignificantAdverseConsequences/expertJudgementDescription TypeofFlood/mechanismUncertainDescription TypeofFlood/otherCharacteristicsDescription EnvironmentDetail/otherDamageDescription CulturalHeritageDetail/otherDamageDescription EconomicActivityDetail/otherDamageDescription HumanHealthSocialDetail/otherDamageDescription Article4.3InternationalInformationExchange/otherInternationalInformationExchange TypeofFlood/otherMechanismDescription TypeofFloodUoM/otherSourceDescription TypeofFlood/otherSourceDescription TypeofFloodUoM/sourceUncertainDescription TypeofFlood/sourceUncertainDescription

facets

Kind	Value	annotation
minLength	10
maxLength	1000

annotation

documentation

String of up to 1000 characters

source

<xs:simpleType name="String1000Type">
<xs:annotation>
    <xs:documentation>String of up to 1000 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="10"/>
    <xs:maxLength value="1000"/>
</xs:restriction>
</xs:simpleType>

simpleType String100Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
minLength	1
maxLength	100

annotation

documentation

String of up to 100 characters

source

<xs:simpleType name="String100Type">
<xs:annotation>
    <xs:documentation>String of up to 100 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="100"/>
</xs:restriction>
</xs:simpleType>

simpleType String2000Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

Kind	Value	annotation
minLength	1
maxLength	2000

annotation

documentation

Type to enter string of 1 to 2000 characters

source

<xs:simpleType name="String2000Type">
<xs:annotation>
    <xs:documentation>Type to enter string of 1 to 2000 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="2000"/>
</xs:restriction>
</xs:simpleType>

simpleType String250Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

ReferenceType/DocumentName FloodLocation/floodLocationName FloodEventInformation/nameOfFloodEvent EconomicActivityDetail/otherConsequenceDescription EnvironmentDetail/otherConsequenceDescription CulturalHeritageDetail/otherConsequenceDescription HumanHealthSocialDetail/otherConsequenceDescription ReferenceType/Subject

facets

Kind	Value	annotation
minLength	1
maxLength	250

annotation

documentation

String of up to 250 characters

source

<xs:simpleType name="String250Type">
<xs:annotation>
    <xs:documentation>String of up to 250 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="250"/>
</xs:restriction>
</xs:simpleType>

simpleType String5000Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
minLength	1
maxLength	5000

annotation

documentation

Type to enter string of 1 to 5000 characters

source

<xs:simpleType name="String5000Type">
<xs:annotation>
    <xs:documentation>Type to enter string of 1 to 5000 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="5000"/>
</xs:restriction>
</xs:simpleType>

simpleType String50Type

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

ReferenceType/Bookmark EconomicActivityDetail/degree_TotalDamage EnvironmentDetail/degree_TotalDamage CulturalHeritageDetail/degree_TotalDamage HumanHealthSocialDetail/degree_TotalDamage EconomicActivityDetail/degree_TotalDamageGDP EnvironmentDetail/degree_TotalDamageGDP CulturalHeritageDetail/degree_TotalDamageGDP HumanHealthSocialDetail/degree_TotalDamageGDP ReferenceType/FileName FloodData/frecuency FloodData/recurrence

facets

Kind	Value	annotation
minLength	1
maxLength	50

annotation

documentation

String of up to 50 characters

source

<xs:simpleType name="String50Type">
<xs:annotation>
    <xs:documentation>String of up to 50 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="50"/>
</xs:restriction>
</xs:simpleType>

simpleType TotalDamageClass_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

elements

EconomicActivityDetail/degree_TotalDamageClass EnvironmentDetail/degree_TotalDamageClass CulturalHeritageDetail/degree_TotalDamageClass HumanHealthSocialDetail/degree_TotalDamageClass

facets

Kind	Value	annotation
enumeration	H - High
enumeration	I - Insignificnt
enumeration	L - Low
enumeration	M - Medium
enumeration	NA - Not Applicable
enumeration	U - Unknown
enumeration	VH - Very high

annotation

documentation

For Insignificnt, Low, Medium, High, Very high, Not Applicable, Unknown:
U=Unknown
NA=Not Applicable
I=Insignificnt;
L=Low;
    M=Medium
    H=High
    VH=Very high

source

<xs:simpleType name="TotalDamageClass_Enum">
<xs:annotation>
    <xs:documentation>For Insignificnt, Low, Medium, High, Very high, Not Applicable, Unknown:
U=Unknown
NA=Not Applicable
I=Insignificnt;
L=Low;
    M=Medium
    H=High
    VH=Very high
</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="H - High"/>
    <xs:enumeration value="I - Insignificnt"/>
    <xs:enumeration value="L - Low"/>
    <xs:enumeration value="M - Medium"/>
    <xs:enumeration value="NA - Not Applicable"/>
    <xs:enumeration value="U - Unknown"/>
    <xs:enumeration value="VH - Very high"/>
</xs:restriction>
</xs:simpleType>

simpleType TypeCulturalHeritage_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

CulturalHeritageDetail/typeCulturalHeritage

facets

Kind	Value	annotation
enumeration	B31 - Cultural Assets
enumeration	B32 - Landscape
enumeration	B33 - Other
enumeration	B34 - Not applicable

annotation

documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.

B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.

B33=Other

B34=Not applicable

source

<xs:simpleType name="TypeCulturalHeritage_Enum">
<xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B31=Cultural Assets: Adverse consequences to cultural heritage, which could include archaeological sites / monuments, architectural sites, museums, spiritual sites and buildings.

B32=Landscape: Adverse permanent or long-term consequences on cultural landscapes, that is cultural properties which represents the combinesd works of nature and man, such as relics of traditional landscapes, anchor locations or zones.

B33=Other

B34=Not applicable

</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="B31 - Cultural Assets"/>
    <xs:enumeration value="B32 - Landscape"/>
    <xs:enumeration value="B33 - Other"/>
    <xs:enumeration value="B34 - Not applicable"/>
</xs:restriction>
</xs:simpleType>

simpleType TypeEconomicActivity_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

EconomicActivityDetail/typeEconomicActivity

facets

Kind	Value	annotation
enumeration	B41 - Property
enumeration	B42 - Infrastructure
enumeration	B43 - Rural Land Use
enumeration	B44 - Economic Activity
enumeration	B45 - Other
enumeration	B46 - Not applicable

annotation

documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B41=Property: Adverse consequences to property, which could include homes.

B42=Infrastructure: Adverse consequences to infrastructural assets such as utilities, power generation, transport, storage and communication.

B43=Rural Land Use: Adverse consequences to uses of the land, such as agricultural activity (livestock, arable and horticulture), forestry, mineral extraction and fishing.

B44=Economic Activity: Adverse consequences to sectors of economic activity, such as manufacturing, construction, retail, services and other sources of employment.

B45=Other

B46=Not applicable

source

<xs:simpleType name="TypeEconomicActivity_Enum">
<xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B41=Property: Adverse consequences to property, which could include homes.

B42=Infrastructure: Adverse consequences to infrastructural assets such as utilities, power generation, transport, storage and communication.

B43=Rural Land Use: Adverse consequences to uses of the land, such as agricultural activity (livestock, arable and horticulture), forestry, mineral extraction and fishing.

B44=Economic Activity: Adverse consequences to sectors of economic activity, such as manufacturing, construction, retail, services and other sources of employment.

B45=Other

B46=Not applicable
</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="B41 - Property"/>
    <xs:enumeration value="B42 - Infrastructure"/>
    <xs:enumeration value="B43 - Rural Land Use"/>
    <xs:enumeration value="B44 - Economic Activity"/>
    <xs:enumeration value="B45 - Other"/>
    <xs:enumeration value="B46 - Not applicable"/>
</xs:restriction>
</xs:simpleType>

simpleType TypeEnvironment_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

EnvironmentDetail/typeEnvironment

facets

Kind	Value	annotation
enumeration	B21 - Waterbody Status
enumeration	B22 - Protected Areas
enumeration	B23 - Pollution Sources
enumeration	B24 - Other potential adverse environmental impacts
enumeration	B25 - Not applicable

annotation

documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.

B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.

B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.

B24=Other potential adverse environmental impacts, such as those on soil, biodiversity, flora and fauna, etc.

B25=Not applicable

.

source

<xs:simpleType name="TypeEnvironment_Enum">
<xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B21=Waterbody Status: Adverse consequences ecological or chemical status of surface water bodies or chemical status of ground water bodies affected, as of concern under the WFD. Such consequences may arise from pollution from various sources (point and diffuse) or due to hydromorphological impacts of flooding.

B22=Protected Areas: Adverse consequences to protected areas or waterbodies such as those designated under the Birds and Habitats Directives, bathing waters or drinking water abstraction points.

B23=Pollution Sources: Sources of potential pollution in the event of a flood, such as IPPC and Seveso installations, or point or diffuse sources.

B24=Other potential adverse environmental impacts, such as those on soil, biodiversity, flora and fauna, etc.

B25=Not applicable

.</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="B21 - Waterbody Status"/>
    <xs:enumeration value="B22 - Protected Areas"/>
    <xs:enumeration value="B23 - Pollution Sources"/>
    <xs:enumeration value="B24 - Other potential adverse environmental impacts"/>
    <xs:enumeration value="B25 - Not applicable"/>
</xs:restriction>
</xs:simpleType>

simpleType TypeHumanHealth_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

HumanHealthSocialDetail/typeHumanHealth

facets

Kind	Value	annotation
enumeration	B11 - Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.
enumeration	B12 - Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).
enumeration	B13 - Other
enumeration	B14 - Not applicaple
enumeration	B10

annotation

documentation

Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.

B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

B13=Other

B14=Not applicaple

source

<xs:simpleType name="TypeHumanHealth_Enum">
<xs:annotation>
    <xs:documentation>
Define relevant type of Consequences. The list are in line with section B in the 'List of flood types and list of consequences' document from February 2011 (version 6).
One or more options can be selected.

B11=Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities.

B12=Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals).

B13=Other

B14=Not applicaple

</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:enumeration value="B11 - Human Health: Adverse consequences to human health, either as immediate or consequential impacts, such as might arise from pollution or interruption of services related to water supply and treatment, and would include fatalities."/>
    <xs:enumeration value="B12 - Community: Adverse consequences to the community, such as detrimental impacts on local governance and public administration, emergency response, education, health and social work facilities (such as hospitals)."/>
    <xs:enumeration value="B13 - Other"/>
    <xs:enumeration value="B14 - Not applicaple"/>
    <xs:enumeration value="B10"/>
</xs:restriction>
</xs:simpleType>

simpleType TypeIEDInstallation_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	1 - Energy industries
enumeration	1.1 - Combustion of fuels in installations with a total rated thermal input of 50 MW or more
enumeration	1.2 - Refining of mineral oil and gas
enumeration	1.3 - Production of coke
enumeration	1.4.a - Gasification or liquefaction of coal
enumeration	1.4.b - Gasification or liquefaction of other fuels in installations with a total rated thermal input of 20 MW or more
enumeration	2 - Production and processing of metals
enumeration	2.1 - Metal ore (including sulphide ore) roasting or sintering
enumeration	2.2 - Production of pig iron or steel (primary or secondary fusion) including continuous casting, with a capacity exceeding 2,5 tonnes per hour
enumeration	2.3.a - Processing of ferrous metals: operation of hot-rolling mills with a capacity exceeding 20 tonnes of crude steel per hour
enumeration	2.3.b - Processing of ferrous metals: operation of smitheries with hammers the energy of which exceeds 50 kilojoule per hammer
enumeration	2.3.c - Processing of ferrous metals application of protective fused metal coats with an input exceeding 2 tonnes of crude steel per hour
enumeration	2.4 - Operation of ferrous metal foundries with a production capacity exceeding 20 tonnes per day
enumeration	2.5.a - Processing of non-ferrous metals: production of non-ferrous crude metals from ore, concentrates or secondary raw materials by metallurgical, chemical or electrolytic processes
enumeration	2.5.b - Processing of non-ferrous metals: melting, including the alloyage, of non-ferrous metals, including recovered products and operation of non- ferrous metal foundries, with a melting capacity exceeding 4 tonnes per day for lead and cadmium or 20 ton
enumeration	2.6 - Surface treatment of metals or plastic materials using an electrolytic or chemical process where the volume of the treatment vats exceeds 30 m3
enumeration	3 - Mineral industry
enumeration	3.1.a - Production of cement clinker in rotary kilns with a production capacity exceeding 500 tonnes per day or in other kilns with a production capacity exceeding 50 tonnes per day
enumeration	3.1.b - Production of lime in kilns with a production capacity exceeding 50 tonnes per day
enumeration	3.1.c - Production of magnesium oxide in kilns with a production capacity exceeding 50 tonnes per day
enumeration	3.2 - Production of asbestos or the manufacture of asbestos-based products
enumeration	3.3 - Manufacture of glass including glass fibre with a melting capacity exceeding 20 tonnes per day
enumeration	3.4 - Melting mineral substances including the production of mineral fibres with a melting capacity exceeding 20 tonnes per day
enumeration	3.5 - Manufacture of ceramic products by firing, in particular roofing tiles, bricks, refractory bricks, tiles, stoneware or porcelain with a production capacity exceeding 75 tonnes per day and/or with a kiln capacity exceeding 4 m3 and with a setting den
enumeration	4 - Chemical industry
enumeration	4.1.a - simple hydrocarbons (linear or cyclic, saturated or unsaturated, aliphatic or aromatic)
enumeration	4.1.b - oxygen-containing hydrocarbons such as alcohols, aldehydes, ketones, carboxylic acids, esters and mixtures of esters, acetates, ethers, peroxides and epoxy resins
enumeration	4.1.c - sulphurous hydrocarbons
enumeration	4.1.d - nitrogenous hydrocarbons such as amines, amides, nitrous compounds, nitro compounds or nitrate compounds, nitriles, cyanates, isocyanates
enumeration	4.1.e - phosphorus-containing hydrocarbons
enumeration	4.1.f - halogenic hydrocarbons
enumeration	4.1.g - organometallic compounds
enumeration	4.1.h - plastic materials (polymers, synthetic fibres and cellulose-based fibres)
enumeration	4.1.i - synthetic rubbers
enumeration	4.1.j - dyes and pigments
enumeration	4.1.k - surface-active agents and surfactants
enumeration	4.2.a - gases, such as ammonia, chlorine or hydrogen chloride, fluorine or hydrogen fluoride, carbon oxides, sulphur compounds, nitrogen oxides, hydrogen, sulphur dioxide, carbonyl chloride
enumeration	4.2.b - acids, such as chromic acid, hydrofluoric acid, phosphoric acid, nitric acid, hydrochloric acid, sulphuric acid, oleum, sulphurous acids
enumeration	4.2.c - bases, such as ammonium hydroxide, potassium hydroxide, sodium hydroxide
enumeration	4.2.d - salts, such as ammonium chloride, potassium chlorate, potassium carbonate, sodium carbonate, perborate, silver nitrate
enumeration	4.2.e - non-metals, metal oxides or other inorganic compounds such as calcium carbide, silicon, silicon carbide
enumeration	4.3 - Production of phosphorous-, nitrogen- or potassium-based fertilisers (simple or compound fertilisers)
enumeration	4.4 - Production of plant protection products or of biocides
enumeration	4.5 - Production of pharmaceutical products including intermediates
enumeration	4.6 - Production of explosives
enumeration	5 - Waste management
enumeration	5.1.a - biological treatment
enumeration	5.1.b - physico-chemical treatment
enumeration	5.1.c - blending or mixing prior to submission to any of the other activities listed in points 5.1 and 5.2
enumeration	5.1.d - repackaging prior to submission to any of the other activities listed in points 5.1 and 5.2
enumeration	5.1.e - solvent reclamation/regeneration
enumeration	5.1.f - recycling/reclamation of inorganic materials other than metals or metal compounds
enumeration	5.1.g - regeneration of acids or bases
enumeration	5.1.h - recovery of components used for pollution abatement
enumeration	5.1.i - recovery of components from catalysts
enumeration	5.1.j - oil re-refining or other reuses of oil
enumeration	5.1.k - surface impoundment
enumeration	5.2.a - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for non-hazardous waste with a capacity exceeding 3 tonnes per hour;
enumeration	5.2.b - Disposal or recovery of waste in waste incineration plants or in waste co-incineration plants for hazardous waste with a capacity exceeding 10 tonnes per day
enumeration	5.3.a - Disposal of non-hazardous waste with a capacity exceeding 50 tonnes per day involving one or more of the following activities, and excluding activities covered by Council Directive 91/271/EEC of 21 May 1991 concerning urban waste-water treatment (
enumeration	5.3.a.i - biological treatment
enumeration	5.3.a.ii - physico-chemical treatment
enumeration	5.3.a.iii - pre-treatment of waste for incineration or co-incineration
enumeration	5.3.a.iv - treatment of slags and ashes
enumeration	5.3.a.v - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components
enumeration	5.3.b - Recovery, or a mix of recovery and disposal, of non-hazardous waste with a capacity exceeding 75 tonnes per day involving one or more of the following activities, and excluding activities covered by Directive 91/271/EEC:
enumeration	5.3.b.i - biological treatment
enumeration	5.3.b.ii - pre-treatment of waste for incineration or co-incineration
enumeration	5.3.b.iii - treatment of slags and ashes
enumeration	5.3.b.iv - treatment in shredders of metal waste, including waste electrical and electronic equipment and end-of-life vehicles and their components.
enumeration	5.4 - Landfills, as defined in Article 2(g) of Council Directive 1999/31/EC of 26 April 1999 on the landfill of waste (OJ L 182, 16.7.1999, p. 1.), receiving more than 10 tonnes of waste per day or with a total capacity exceeding 25 000 tonnes, excluding
enumeration	5.5 - Temporary storage of hazardous waste not covered under point 5.4 pending any of the activities listed in points 5.1, 5.2, 5.4 and 5.6 with a total capacity exceeding 50 tonnes, excluding temporary storage, pending collection, on the site where the w
enumeration	5.6 - Underground storage of hazardous waste with a total capacity exceeding 50 tonnes
enumeration	6 - Other activities
enumeration	6.1.a - pulp from timber or other fibrous materials
enumeration	6.1.b - paper or card board with a production capacity exceeding 20 tonnes per day
enumeration	6.1.c - one or more of the following wood-based panels: oriented strand board, particleboard or fibreboard with a production capacity exceeding 600 m3 per day
enumeration	6.2 - Pre-treatment (operations such as washing, bleaching, mercerisation) or dyeing of textile fibres or textiles where the treatment capacity exceeds 10 tonnes per day
enumeration	6.3 - Tanning of hides and skins where the treatment capacity exceeds 12 tonnes of finished products per day
enumeration	6.4b - Treatment and processing, other than exclusively packaging, of the following raw materials, whether previously processed or unprocessed, intended for the production of food or feed from:
enumeration	6.4.a - Operating slaughterhouses with a carcass production capacity greater than 50 tonnes per day
enumeration	6.4.b.i - only animal raw materials (other than exclusively milk) with a finished product production capacity greater than 75 tonnes per day;
enumeration	6.4.b.ii - only vegetable raw materials with a finished product production capacity greater than 300 tonnes per day or 600 tonnes per day where the installation operates for a period of no more than 90 consecutive days in any year;
enumeration	6.4.b.iii - animal and vegetable raw materials, both in combined and separate products, with a finished product production capacity in tonnes per day greater than: - 75 if A is equal to 10 or more; or, - [300- (22,5 × A)] in any other case, where ‘A’ is t
enumeration	6.4.c - Treatment and processing of milk only, the quantity of milk received being greater than 200 tonnes per day (average value on an annual basis).
enumeration	6.5 - Disposal or recycling of animal carcases or animal waste with a treatment capacity exceeding 10 tonnes per day
enumeration	6.6.a - Intensive rearing of poultry or pigs with more than 40 000 places for poultry;
enumeration	6.6.b - Intensive rearing of poultry or pigs with more than 2 000 places for production pigs (over 30 kg), or
enumeration	6.6.c - Intensive rearing of poultry or pigs with more than 750 places for sows
enumeration	6.7 - Surface treatment of substances, objects or products using organic solvents, in particular for dressing, printing, coating, degreasing, waterproofing, sizing, painting, cleaning or impregnating, with an organic solvent consumption capacity of more t
enumeration	6.8 - Production of carbon (hard-burnt coal) or electrographite by means of incineration or graphitisation
enumeration	6.9 - Capture of CO2 streams from installations covered by this Directive for the purposes of geological storage pursuant to Directive 2009/31/EC
enumeration	6.10 - Preservation of wood and wood products with chemicals with a production capacity exceeding 75 m3 per day other than exclusively treating against sapstain
enumeration	6.11 - Independently operated treatment of waste water not covered by Directive 91/271/EEC and discharged by an installation covered by Chapter II

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

used by

element

ReferenceType/Hyperlink

facets

Kind	Value	annotation
minLength	1
maxLength	250
pattern	https?://.*

annotation

documentation

URL string of up to 250 characters

source

<xs:simpleType name="URLType">
<xs:annotation>
    <xs:documentation>URL string of up to 250 characters</xs:documentation>
</xs:annotation>
<xs:restriction base="xs:string">
    <xs:minLength value="1"/>
    <xs:maxLength value="250"/>
    <xs:pattern value="https?://.*"/>
</xs:restriction>
</xs:simpleType>

simpleType WFDAssociationType_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	Overlapping (partly within)
enumeration	Within

source

<xs:simpleType name="WFDAssociationType_Enum">
<xs:restriction base="xs:string">
<xs:enumeration value="Overlapping (partly within)"/>
<xs:enumeration value="Within"/>
</xs:restriction>
</xs:simpleType>

simpleType WiseDate

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:date

Kind	Value	annotation
pattern	\d{4}-\d{2}-\d{2}

source

<xs:simpleType name="WiseDate">
<xs:restriction base="xs:date">
<xs:pattern value="\d{4}-\d{2}-\d{2}"/>
</xs:restriction>
</xs:simpleType>

simpleType WiseDateTime

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:dateTime

Kind	Value	annotation
pattern	\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}

source

<xs:simpleType name="WiseDateTime">
<xs:restriction base="xs:dateTime">
<xs:pattern value="\d{4}-\d{2}-\d{2}T\d{2}:\d{2}:\d{2}"/>
</xs:restriction>
</xs:simpleType>

simpleType WiseDateTimeType

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

union of (WiseDate, WiseDateTime, WiseYear, WiseYearMonth)

annotation

documentation

Dates must be reported using the ISO 8601 extended format: YYYY-MM-DD, for days; YYYY-MM, for months; YYYY, for years. (If necessary, or convenient, time values can be reported. The ISO 8601 extended format for UTC time should be used.)

source

<xs:simpleType name="WiseDateTimeType">
<xs:annotation>
<xs:documentation>Dates must be reported using the ISO 8601 extended format: YYYY-MM-DD, for days; YYYY-MM, for months; YYYY, for years. (If necessary, or convenient, time values can be reported. The ISO 8601 extended format for UTC time should be used.)</xs:documentation>
</xs:annotation>
<xs:union memberTypes="WiseDate WiseDateTime WiseYear WiseYearMonth"/>
</xs:simpleType>

simpleType WiseEvolutionTypeValue

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	aggregation
enumeration	change
enumeration	changeBothAggregationAndSplitting
enumeration	changeCode
enumeration	changeExtendedArea
enumeration	changeReducedArea
enumeration	creation
enumeration	deletion
enumeration	noChange
enumeration	splitting

source

simpleType WiseLanguageCode_Enum

namespace

http://water.eionet.europa.eu/schemas/dir200760ec/fdcommon

type

restriction of xs:string

facets

Kind	Value	annotation
enumeration	alb
enumeration	arm
enumeration	baq
enumeration	bel
enumeration	bul
enumeration	cat
enumeration	cze
enumeration	dan
enumeration	dut
enumeration	eng
enumeration	est
enumeration	fao
enumeration	fin
enumeration	fre
enumeration	geo
enumeration	ger
enumeration	gle
enumeration	glg
enumeration	gre
enumeration	hrv
enumeration	hun
enumeration	ice
enumeration	ita
enumeration	lav
enumeration	lit
enumeration	ltz
enumeration	mac
enumeration	mis
enumeration	mlt
enumeration	nor
enumeration	pol
enumeration	por
enumeration	roh
enumeration	rum
enumeration	rus
enumeration	slo
enumeration	slv
enumeration	spa
enumeration	srp
enumeration	swe
enumeration	tur
enumeration	ukr
